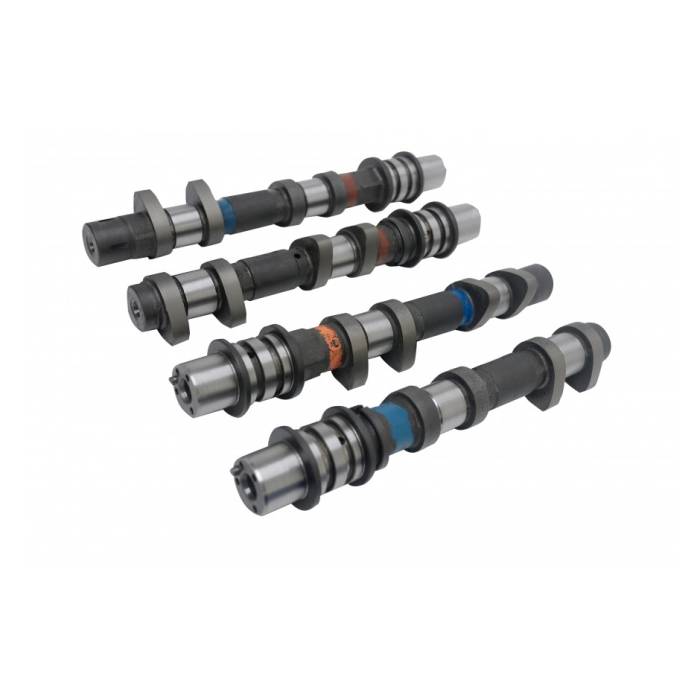

Kelford Cams 220-E Camshaft Set - Dual AVCS (08-21 STI)
$999.00
SKU
kef220-E
This range of Kelford Camshafts to suit the Subaru WRX STi EJ257B dual AVCS features the same successful lobe designs used on the earlier engines. The Dual AVCS on this engine is a great tool for the tuner to provide a greater operating range. The Kelford range of camshafts feature a unique camshaft design technology called “ICE” or Improved Combustion Efficiency. This “ICE” split duration design has in turn created a significant combustion efficiency gain for these engines. No other aftermarket camshaft company offers this unique technology.
290 degree camshafts to suit high boost, high rpm Drag racing engines. Must be run with fixed timing, not suitable in variable situations.
SPECIFICATIONS
- 292 & 288 / 294 Degrees advertised duration.
- 11.00mm & 11.00mm / 11.00mm lift.
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.20mm | Exhaust: | 11.25mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.25mm | Intake: | 292 | Exhaust: | 294 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 250 | Exhaust: | 252 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 13 BTDC | EVO: | 64 BBDC | ||
| IVC: | 57 ABDC | EVC: | 8 ATDC | ||||
| Suggested Centre Lines: | Intake: | 112 | Exhaust: | 118 | |||
| VALVE | Lift @ TDC | Intake: | 2.42mm | Exhaust: | 1.85 | ||
Vehicle Fitment
2008 - 2021 Subaru STI
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.
| SKU | kef220-E |
|---|---|
| Manufacturer's Part Number | 220-E |
| Brand | Kelford Cams |
