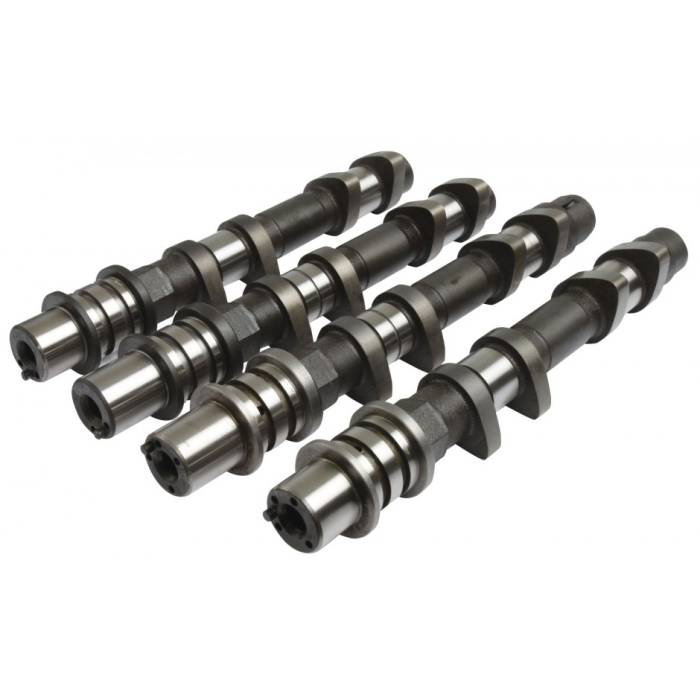

Kelford Cams R-199-E Camshaft Set - Single AVCS (04-07 STI, 06-14 WRX)
290 degree camshafts to suit high boost, high rpm Drag racing engines. Must be run with fixed timing, not suitable in variable situations.
SPECIFICATIONS
- 292 & 288 / 294 Degrees advertised duration.
- 11.00mm & 11.00mm / 11.00mm lift.
**Chart with more specifications below**
$999.00
SKU
kefR-199-E
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. Although now we have experienced rapid growth and our products are proving popular all around the globe, it is our personal service and advice that made us as successful as we are today. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements.
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.20mm | Exhaust: | 11.25mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.25mm | Intake: | 292 | Exhaust: | 294 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 250 | Exhaust: | 252 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 13 BTDC | EVO: | 64 BBDC | ||
| IVC: | 57 ABDC | EVC: | 8 ATDC | ||||
| Suggested Centre Lines: | Intake: | 112 | Exhaust: | 118 | |||
| VALVE | Lift @ TDC | Intake: | 2.42mm | Exhaust: | 1.85 | ||
Vehicle Fitment
- 2006 - 2014 Subaru WRX
- 2004 - 2007 Subaru STI
- 2004 - 2013 Subaru Forester XT
- 2005 - 2009 Subaru Legacy GT
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.
| SKU | kefR-199-E |
|---|---|
| Manufacturer's Part Number | R-199-E |
| Brand | Kelford Cams |
