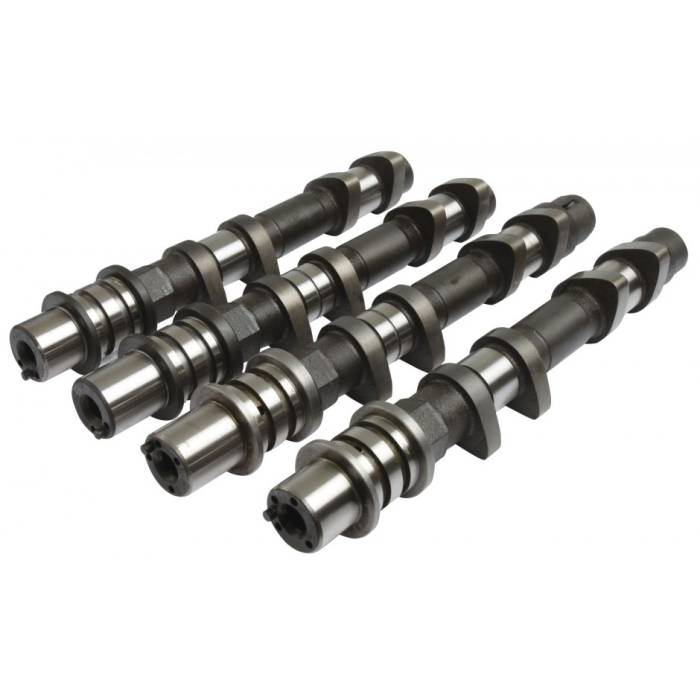

Kelford Cams R-199-B Camshaft Set - Single AVCS (04-07 STI, 06-14 WRX)

$1,037.40

SKU

kefR-199-B

Race and Rally camshafts. High lift, low duration design for great throttle response. Must have shimless buckets and aftermarket ECU.

264 & 260 / 260 Degrees advertised duration.
10.70mm & 10.20mm / 10.20mm lift.

Chart with more specifications below

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Valve Clearance:		Intake:	0.20mm	Set	COLD	at the	CAM
		Exhaust:	0.25mm	Set	COLD	at the	CAM

Cam Lift:		Intake:			10.90mm	Exhaust:	10.45mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			10.70mm	Exhaust:	10.20mm
Advertised Duration @	0.25mm	Intake:			264	Exhaust:	260
Duration @	1.00mm VALVE LIFT	Intake:			225	Exhaust:	222
Timing @	1.00mm VALVE LIFT	IVO:			17.5 ATDC	EVO:	44 BBDC
		IVC:			62.5 ABDC	EVC:	2 BTDC
Suggested Centre Lines:		Intake:			130	Exhaust:	113
VALVE	Lift @ TDC	Intake:			0.03mm	Exhaust:	0.83

Vehicle Fitment

2006 - 2014 Subaru WRX
2004 - 2007 Subaru STI
2004 - 2013 Subaru Forester XT
2005 - 2009 Subaru Legacy GT

WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.

More Information

More Information
SKU	kefR-199-B
Manufacturer's Part Number	R-199-B
Brand	Kelford Cams
Product Type	Engine
Engine	Cylinder Heads and Valvetrain
