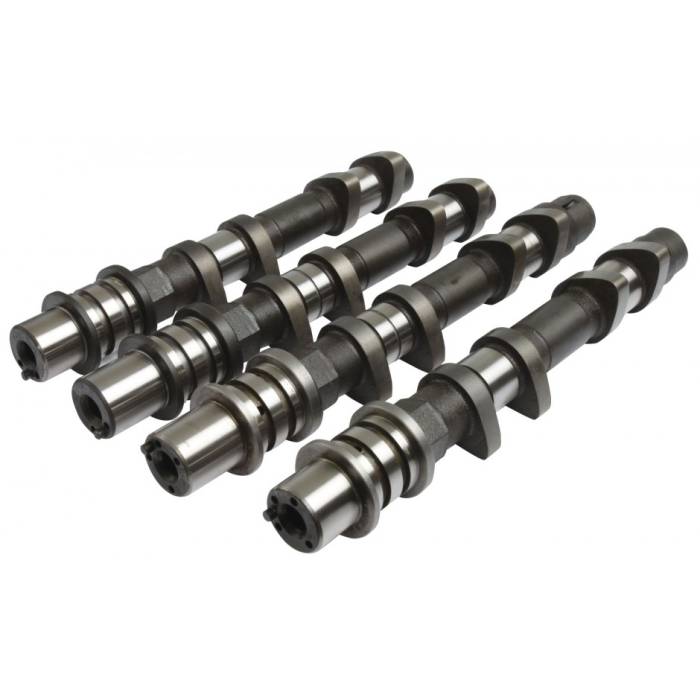

Kelford Cams R-199-D Camshaft Set - Single AVCS (04-07 STI, 06-14 WRX)

$999.00

SKU

kefR-199-D

High Lift 282 degree duration racing cams. These cams require cylinder head modification to fit. Suits well built motors with larger intake manifolds. Good on E85 fuel. Must have shimless buckets and aftermarket ECU.

282 & 278 / 278 Degrees advertised duration.
11.50mm & 11.00mm / 11.00mm lift.

Chart with more specifications below

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Valve Clearance:		Intake:	0.20mm	Set	COLD	at the	CAM
		Exhaust:	0.25mm	Set	COLD	at the	CAM

Cam Lift:		Intake:			11.70mm	Exhaust:	11.25mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			11.50mm	Exhaust:	11.00mm
Advertised Duration @	0.25mm	Intake:			282	Exhaust:	278
Duration @	1.00mm VALVE LIFT	Intake:			240	Exhaust:	236
Timing @	1.00mm VALVE LIFT	IVO:			10 ATDC	EVO:	51 BBDC
		IVC:			70 ABDC	EVC:	5 ATDC
Suggested Centre Lines:		Intake:			130	Exhaust:	113
VALVE	Lift @ TDC	Intake:			0.25mm	Exhaust:	1.23

Vehicle Fitment

2006 - 2014 Subaru WRX
2004 - 2007 Subaru STI
2004 - 2013 Subaru Forester XT
2005 - 2009 Subaru Legacy GT

WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.

More Information

More Information
SKU	kefR-199-D
Manufacturer's Part Number	R-199-D
Brand	Kelford Cams
