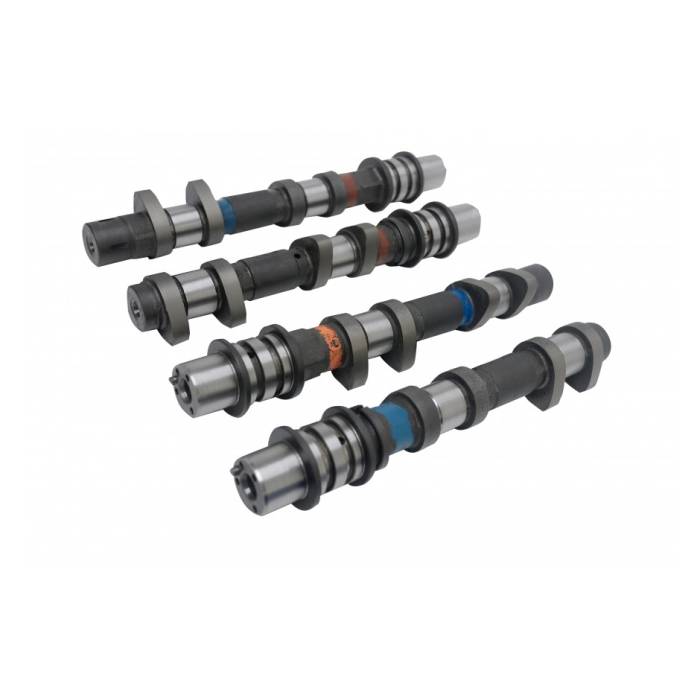

Kelford Cams 220-A Camshaft Set - Dual AVCS (08-21 STI)
This range of Kelford Camshafts to suit the Subaru WRX STi EJ257B dual AVCS features the same successful lobe designs used on the earlier engines. The Dual AVCS on this engine is a great tool for the tuner to provide a greater operating range. The Kelford range of camshafts feature a unique camshaft design technology called “ICE” or Improved Combustion Efficiency. This “ICE” split duration design has in turn created a significant combustion efficiency gain for these engines. No other aftermarket camshaft company offers this unique technology.
High torque cams to suit near stock engines. Ideal in 36mm restrictor classes.
SPECIFICATIONS
- 256 & 252 / 260 Degrees advertised duration.
- 9.55mm & 9.55mm / 9.50mm lift.
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. Although now we have experienced rapid growth and our products are proving popular all around the globe, it is our personal service and advice that made us as successful as we are today. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements.
Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 9.75mm | Exhaust: | 9.75mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.55mm | Exhaust: | 9.50mm | |||
Advertised Duration @ | 0.25mm | Intake: | 256 | Exhaust: | 260 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 218 | Exhaust: | 222 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 21 ATDC | EVO: | 57 BBDC | ||
IVC: | 59 ABDC | EVC: | 15 BTDC | ||||
Suggested Centre Lines: | Intake: | 130 | Exhaust: | 126 | |||
VALVE | Lift @ TDC | Intake: | Exhaust: |
Vehicle Fitment
- 2008 - 2021 Subaru STI
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.
SKU | kef220-A |
---|---|
Manufacturer's Part Number | 220-A |
Brand | Kelford Cams |
