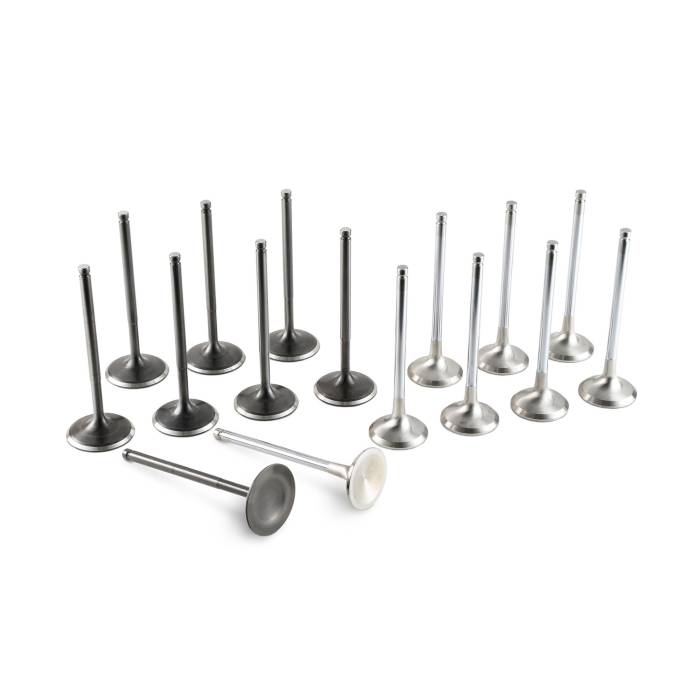

Tomei Racing Valve Set +1mm (15-21 WRX)
$504.00
SKU
TA303A-SB04A
HIGH-FLOW, ULTRA DURABLE, HEAT RESISTANT RACE SPEC VALVES
Designed to withstand high power applications
OVERSIZED VALVES
The oversized head diameter is designed specifically for each application, significantly improving the flow rate.
WAISTED STEM
The waisted stem allows a greater volume of air/gases to enter and exit the combustion chamber as the valve extends. (not available on some models)
ENGINE SPECIFIC DESIGN
Each valve is designed and precision machined specifically for the intended engine/application.The head, face, stem and lock groove designs have also been optimized to enhance sealing performance, efficiency and durability.
HEAT RESISTANCE & DURABILITY
INTAKE - SUH35 HEAT RESISTANT STEEL with SPECIALLY FORMULATED COATING.
The intake valves are made using SUH35 HEAT RESISTANT STEEL which is more commonly used to make exhaust valves. These are then coated with a special formula that further improves the valves' resistance to heat, wear and corrosion.
EXHAUST - INCONEL 751 ALLOY
In order to withstand temperatures of up to around 1000℃, the exhaust valves are made using a nickel based heat resistant alloy, INCONEL 751.
IN&EX COMPLETE SET
Although sold as an IN&EX complete set, each valve can also be purchased individually.
| APPLICATION | IN/EX | â‘ HEAD DIA.(mm) |
â‘¡ STEM DIA(mm) |
â‘¢ LENGTH(mm) |
| FA20DIT 2015+ |
IN | 35.00 [+1.0] |
5.46 | 105.00 |
| EX | 30.00 [+1.0] |
5.45 | 97.70 |
| Year Fitments | Subaru WRX | ||
|---|---|---|---|
| 2015 | ✓ | ||
| 2016 | ✓ | ||
| 2017 | ✓ | ||
| 2018 | ✓ | ||
| 2019 | ✓ | ||
| 2020 | ✓ | ||
| 2021 | ✓ |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | TA303A-SB04A |
|---|---|
| Manufacturer's Part Number | TA303A-SB04A |
| Brand | Tomei |
