Tomei Expreme TI Titanium Exhaust - Single - SR20DET/KA24DE (S13)

$1,161.00
SKU
TB6090-NS08A

With an overall dramatic performance improvement & weight reduction. The 180SX & Silvias are reborn.

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled.

RACING LAYOUT

For the best exhaust efficiency results minimal bends and curves was the design focus points on this product which aided with the supreme results.

3 PIECE ASSEMBLY

No flanges were fitted for increased weight savings and for a better finish with the race look secure springs and clamp methods.

PERFORMANCE VALUE

The best performance is made possible with the best materials and still with keeping it within everyone's reach.

DRY RACE SOUND

The instinctive sound of a true race exhaust sound that a Titanium material exhaust gives will intoxicate you with the dry race exhaust sound.

STOCK COMPARISION

The exhaust flow design was the main focus in the pipe design, the best pipe thickness for weight and strength with pipe diameter to suit torque and all power gains throughout the entire power band.

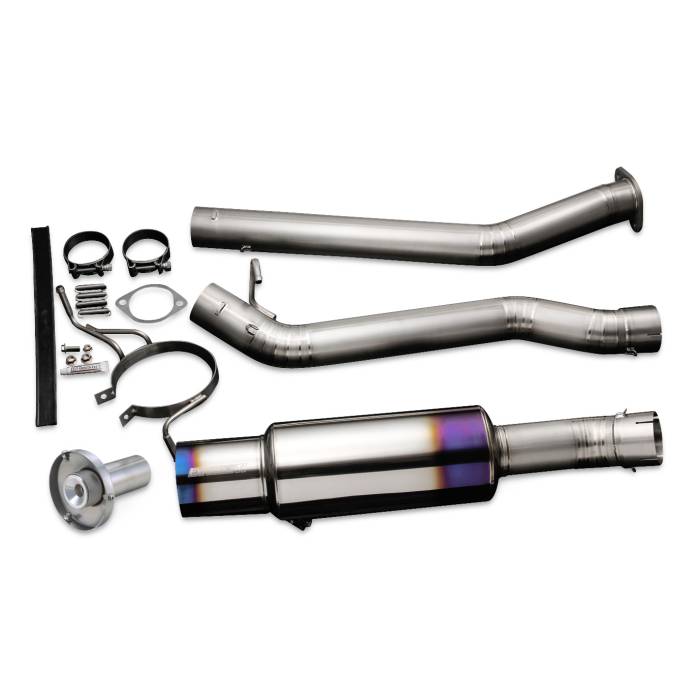

KIT CONTENTS

  • MAIN PIPE A (1)
  • MAIN PIPE B (1)
  • SILENCER ASSY (1)
  • FLANGE NUT M10 (P=1.25mm) (2)
  • GASKET (1)
  • CLAMP BAND (2)
  • SPRING (4)
  • SILENCER BAND (1)
  • SILENCER BAND RUBBER (1)
  • FLANGE BOLT M8 (L=25mm) (1)
  • FLANGE NUT M8 (1)
  • SOUND REDUCER VER.2 (1)



  (R)PS13
  TOMEI OEM
MATERIAL TITANIUM STEEL
MAIN PIPE
DIAMETER
3.15inch
(80.0mm)
2.13inch
(54.0mm)
MAIN PIPE
THICKNESS
1.0mm 1.5mm
SILENCER
DIAMETER
5.98inch
(152mm)

SILENCER
BROAD
THICKNESS
1.0mm
TIP DIAMETER 4.53inch
(115mm)
1.5inch×2
(38.1mm×2)
TIP BROAD
THICKNESS
1.0mm
FLANGE
THICKNESS
8.0mm 8.0mm
WEIGHT 10.3lbs
(4.65kg)
34.2lbs
(14.50kg)



WEIGHT

COMPARISON

(R)PS13

TOMEI

OEM

10.3lbs

(4.65kg)

34.2lbs

(14.50kg)



[ Excluded from Shipping Specials ]

0 0




WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings

More Information
SKU TB6090-NS08A
Manufacturer's Part Number TB6090-NS08A
Brand Tomei
