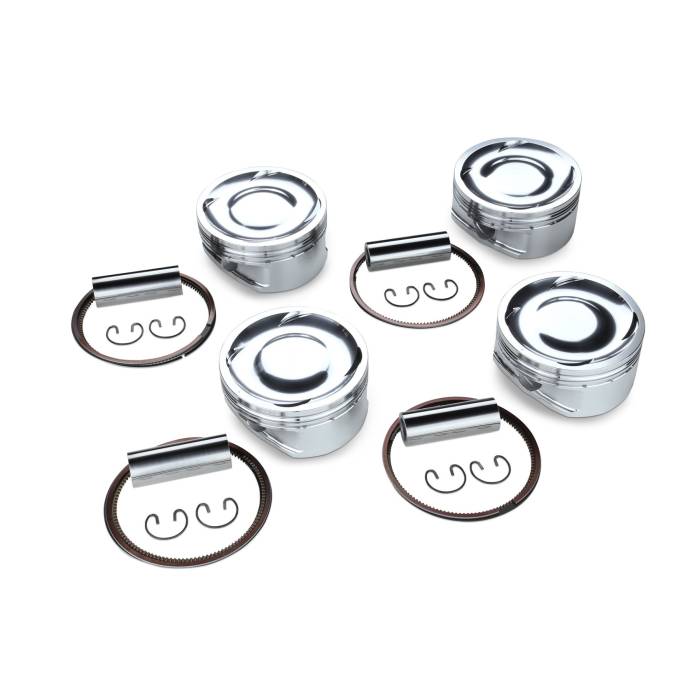

Tomei CP Forged Piston Set - 99.75mm - CH30.70 - STD/2.6 (EJ25)
$1,080.00
SKU
TA202A-SB02AP
| Application | EJ25 | |
| Type | TOMEI | CP |
| Bore (mm) | 99.75 (OEM +0.25) | 99.75 (OEM +0.25) |
| Pin Diameter (mm) | 23.0 | 23.0 |
| Pin Length (mm) | 62.0 | 64.0 |
| Circlip Inner Diameter (mm) | 23.0 | 23.0 |
| Valve Recess | WITH | WITH |
| Compression Height (mm) | 30.70 (OEM ±0.0) | 30.70 (OEM ±0.0) |
| Piston Volume (cc) | -18.8 | |
| Piston Weight (g) | 390.0 | |
| Pin Weight (g) | 133.0 | 130.0 |
| Total Weight (g) | 520.0 | |
| Top Ring (mm） | 1.20 x 3.50 | |
| Second Ring (mm） | 1.20 x 4.00 | |
| Oil Ring (mm） | 2.00 x 2.70 | |
| Piston Material | A4032 | A2618 |
| Compatibility | ||
Lightweight and high rigidity forged piston:
High-strength forging manufacturing method is adopted rather than the mainstream casting method used for commercial vehicles. Taking advantage of high temperature strength and high strength, weight reduction is achieved by making the walls thinner.
Forging material exclusive for each mode:
Excess material is minimized by using exclusive forged material, and prevents excessive machining that results to reduction in strength.
3D Profile:
In order to achieve smooth piston movement with optimal clearance, it has an oval barrel shape with coefficient of thermal expansion calculated.
Compatible with 1mm oversized valves:
The piston recess is shaped to also support the use of 1mm oversized valves.
Designed for thin piston rings:
Friction loss is reduced by thinning the piston ring.
Pins/Clips/Rings Included:
Comes with pins, clips, and rings that are optimally designed for this model.
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | TA202A-SB02AP |
|---|---|
| Brand | Tomei |
