SPL Front Tie Rod Ends - Bumpsteer Adjustable (08+ WRX, 08-21 STI, 13+ BRZ)
$269.10
SKU
sppSPL TRE FRS

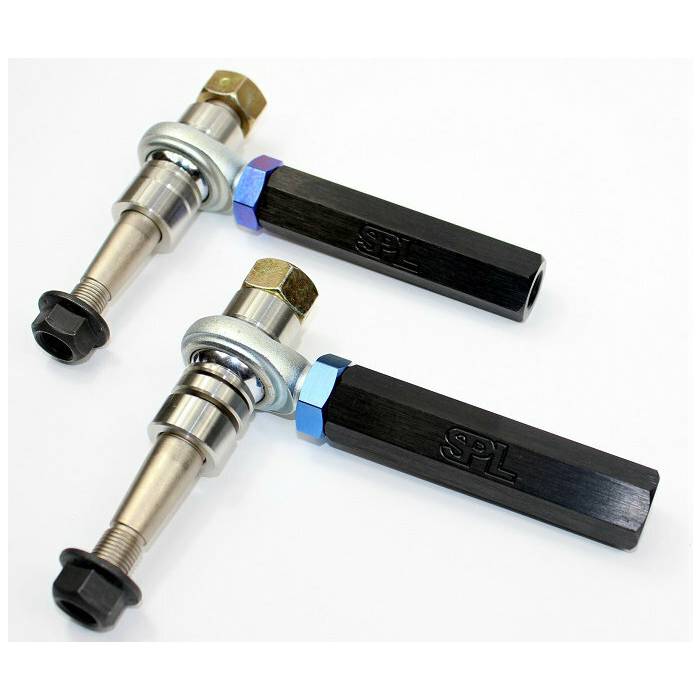

SPL Tie Rod Ends for the GR86 / BRZ / GT86 / FR-S allows for bumpsteer adjustment by allowing the tie rod end pivot to be relocated with the use of spacers. On lowered cars, this results in less dynamic toe change (aka bumpsteer) as the suspension compresses (bump) during cornering and over rough roads, resulting in more predictable handling, less tire shoulder wear, and better stability over rough roads and track curbing.
Benefits
- Large Range of Bumpsteer Correction
- Lightweight: 2.22 lbs (1.0 kg) / 1.11 lbs (0.5 kg) per Side
- Improves Steering Feel, Handling, and Stability Over Bumps, Especially While Braking/Turning
- Reduced Front Tire Toe Wear
- Maintenance-Free, US Made, PTFE-Lined FK Bearings
Materials
- 6061-T6 Aluminum Turnbuckle
- 6061-T6 Aluminum Ring Spacer (For GR86 / 2nd Gen BRZ)
- 4140 Chromoly Steel Tapered Stud
- 304 Stainless Steel 1/8", 1/4", and 1/2" Spacers
- Ti-6Al-4V Titanium Jam Nut (Anodized Blue)
Replaces OEM Part Numbers
This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.
Toyota
SU003-00833
SU003-00834
Subaru
34161CA000
34161CA010
34161CC000
34161CC010
| Year Fitments | Subaru WRX | Subaru STI | Subaru BRZ |
|---|---|---|---|
| 2008 | ✓ | ✓ | |
| 2009 | ✓ | ✓ | |
| 2010 | ✓ | ✓ | |
| 2011 | ✓ | ✓ | |
| 2012 | ✓ | ✓ | |
| 2013 | ✓ | ✓ | ✓ |
| 2014 | ✓ | ✓ | ✓ |
| 2015 | ✓ | ✓ | ✓ |
| 2016 | ✓ | ✓ | ✓ |
| 2017 | ✓ | ✓ | ✓ |
| 2018 | ✓ | ✓ | ✓ |
| 2019 | ✓ | ✓ | ✓ |
| 2020 | ✓ | ✓ | ✓ |
| 2021 | ✓ | ✓ | |
| 2022 | ✓ | ✓ | |
| 2023 | ✓ | ✓ | |
| 2024 | ✓ | ✓ |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | sppSPL TRE FRS |
|---|---|
| Manufacturer's Part Number | SPL TRE FRS |
| Brand | SPL Parts |
