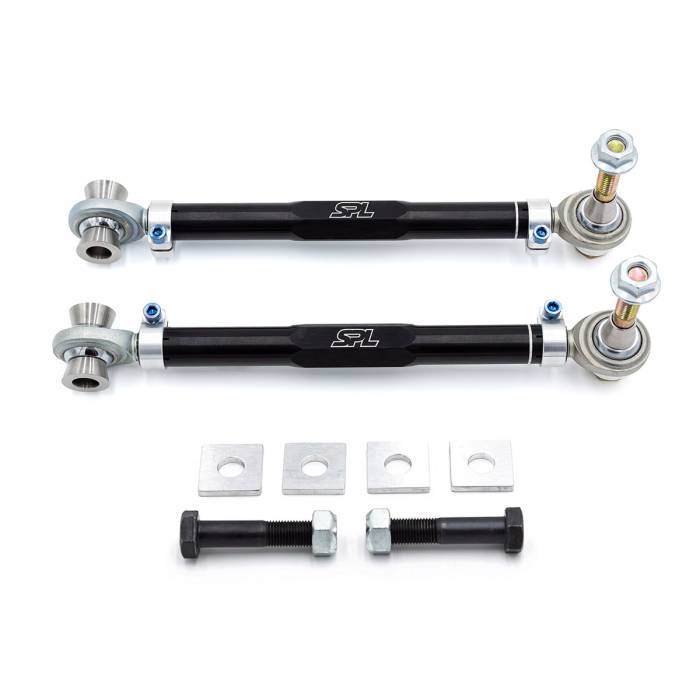

SPL Rear Toe Arms with Eccentric Lockouts (2022+ WRX)
$449.00
SKU
sppSPL RTAEL VB
SPL Rear Toe (RTAEL) Arms for the Subaru WRX (VB) reduce some of the unwanted bumpsteer due to the compliant OEM rubber bushing deflecting. This gives a sharper, more responsive turn-in by increasing the yaw rate to help combat understeer while also giving a more linear, predictable handling behavior. For those lowering, or even raising your WRX, our arms also have a huge toe adjustability range needed to accomodate proper alignments.
This kit (RTAEL VB) also includes our eccentric lockout kit which deletes the OEM eccentric bolts, which are prone to slipping with aggressive driving and additional grip. This protects your alignment (and track days) from unwanted change due to bolt slip as a result.
For advanced setups, pairing our rear traction arms with our rear toe arms opens the door to making changes to the rear bumpsteer curve to dial-in the specific handling behavior you prefer: more rear steering to combat lazy turn-in, more neutrality to improve tire wear and stability, or simply retain the OEM behavior at most ride heights.
Benefits
- Sharpened Response and Reduced Understeer
- Eliminates Eccentric Bolt Slip and Resulting Alignment Change
- Lightweight: 1.45 lbs (0.66 kg) per Side (25% Lighter than OEM)
- Improves Handling by Reducing Unwanted Toe Change
- Additional Bumpsteer Tuning (with RTR VB)
- Maintenance-Free, US Made, PTFE-Lined FK Bearings
Materials
- 6061-T6 Hollow Aluminum Arm and 360° Clamps
- 304 Stainless Steel Spacers
- Ti-6Al-4V Titanium Hardware (Anodized Blue)
The SPL rear toe arms are not a significant contributor to NVH. The minimal amount of road noise is appreciably dampened by the large OEM subframe bushings. If you've upgraded to solid subframe mounts then a small amount of road noise can be contributed, particularly over certain types of surfaces.
Replaces OEM Part Numbers
This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.
Subaru
20250FL010
| Year Fitments | Subaru WRX | ||
|---|---|---|---|
| 2022 | ✓ | ||
| 2023 | ✓ | ||
| 2024 | ✓ | ||
| 2025 | ✓ |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | sppSPL RTAEL VB |
|---|---|
| Manufacturer's Part Number | SPL RTAEL VB |
| Brand | SPL Parts |
