Radium Catch Can Kit - PCV (15-20 F150, V6 EcoBoost Ford Raptor)

The 20-0481-FL Catch Can Kit, PCV, 15-20 F150 Raptor EcoBoost V6, Fluid Lock secures to the firewall with no modifications required. This catch can runs inline with the PCV (positive crankcase ventilation) valve and retains it's factory function. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: No inline check valve is required since Radium catch cans are pressure sealed. This means a direct intake manifold connection is permitted.

This kit is compatible with the 15-20 EcoBoost V6 powered Ford Raptor and F-150 (4WD and 2WD).

The Radium Engineering catch cans are the most functional and integrated kits on the market. The catch cans mount using factory holes and integrate perfectly with the surrounding components. These two oil catch cans (PCV side and CCV side) function completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required.

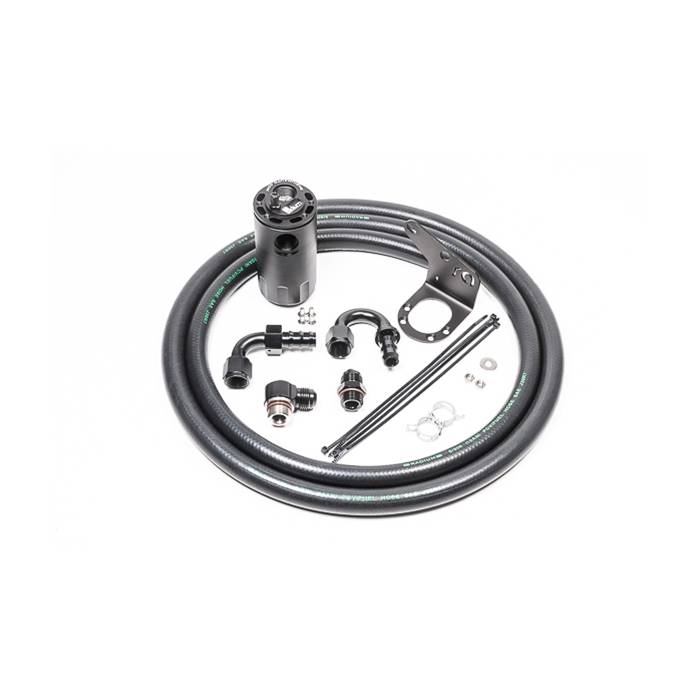

INCLUDES

• Anodized oil catch can with integrated condenser and dipstick
• Anodized aluminum F150 specific mounting bracket
• Anodized aluminum -AN adapter fittings and hose ends
• Stainless steel mounting hardware
