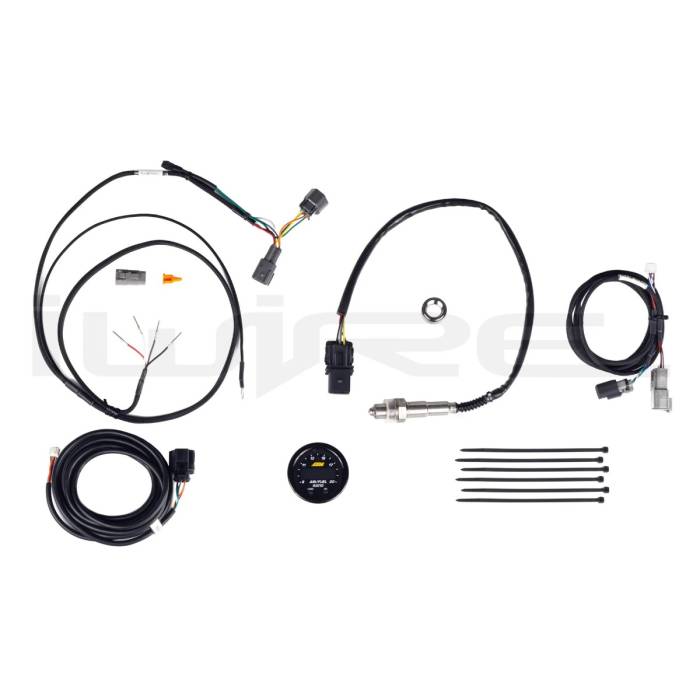

iWire Wideband X-Line Series with Gauge with iWire PnP (Subaru)
As low as
$399.99
Only %1 left
SKU
iWire Wideband X-Line Series with Gauge with iWire PnP
A Gauge for You and Logging for Your Tuner
If you’re filling out that gauge pod, a wideband would be a great choice because it’s an excellent way for you to quickly check how well the engine is running while on the road. The trouble is that a visual display isn’t helpful for your tuner. They’ll need to see Air/Fuel Ratio (AFR) information in context with the rest of the critical engine data to get and keep your car running at peak performance. Our iWire Spec modifications to the wideband kit factor in simultaneous logging and display with a simple plug and play install.
Stop Hunting the Web for How to Wire Your Wideband
We’ve all been at the point where your eyes are red, and your brain is mush after reading a bunch of posts about different ways people have wired up their AEM wideband gauge. The cars are always different, and the wires don’t match up. Instead of wasting your time with all the hunting around on the web and still being unsure, just run a couple of wires from the engine bay into the cabin, and plug them in. You’ll be “widebanding” in no time!
I Have a Factory Front Oxygen (02) Sensor. Isn't This Enough for Tuning?
Unfortunately, no. The front O2 sensor (the one in the header) is sometimes considered a wideband sensor. Still, it technically doesn't have a wide enough range for proper tuning. It will stay in the car for ECU to function properly, but the factory sensor's lack of accurate Air/Fuel metering leaves a need for an additional upgraded wideband sensor so that your tuner can safely calibrate the car whether in person or remotely.
Compatible Cars
2002-2005 WRX: Wideband works with this car for data logging the raw value (will need to be converted from voltage to AFR outside of the AP) and gauge display on the AP will be the raw value of 0-5 volt as well.
2006-2014 WRX
2004-2021 STi
2004-2013 Forester XT
2005-2012 Legacy GT
2005-2009 Outback XT
Fitment Notes
[ With COBB's Greenspeed Update there is no current option to datalog with the AP at this time. This feature would still work if you utilize other tuning platforms. Please reach out if you have any questions. ]
AEM Part Number 30-0300
Gauge size is 52mm.
Unfortunately iWire cannot sell the plug and play wiring separately from the unit because the wiring harness of the unit must be modified in house.
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.
| SKU | iWire Wideband X-Line Series with Gauge with iWire PnP |
|---|---|
| Brand | I-Wire |
