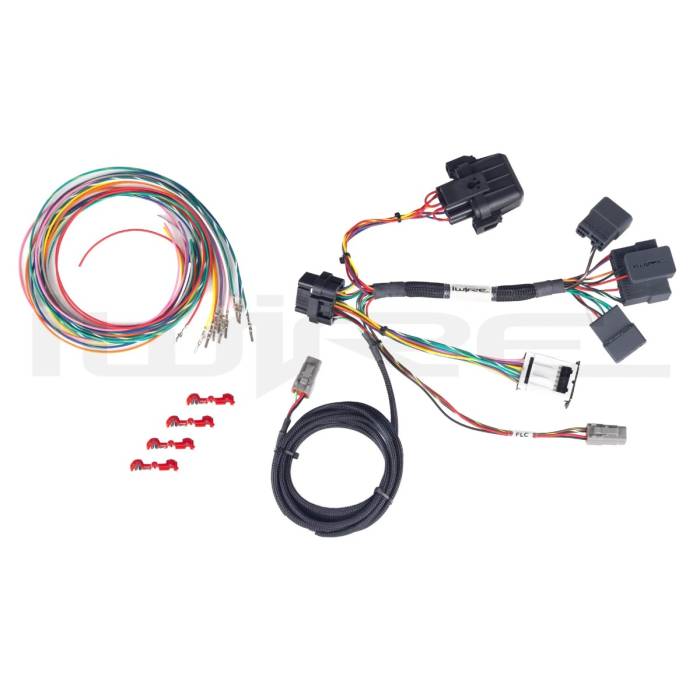

iWire Haltech IC-7 Dash Adapter Harness

That new Haltech IC-7 Digital Dash looks slick, but I just got a box of spaghetti with it. Now what?

Make your life easier with the iWire IC-7 Digital Dash Adapter Harness! This plug-and-play harness streamlines the installation process and saves you time and hassle. Say goodbye to complicated and hello to simple. (You're welcome.)

Can't I Just Plug in the CANbus Cable That Came With My IC-7?

The Haltech-supplied CANbus harness provides basic power, ground, and ECU communication, but that's where the simplicity ends. Removing the cluster will cause issues with the alternator circuit, preventing the car from charging. Our easy installation will get the alternator working again and set you up to display fuel level, parking brake position, high-beam indicator, and turn signals.

What Does the Adapter Harness Do?

The adapter harness will handle all standard connections between the chassis and the new dash. These include:

• Alternator Charging Circuit
• Parking Brake Light
• High-beam Light
• Turn Signals
• Fuel Level
• Updated CANbus Cable From Dash to ECU
• Expansion Connector For Dash Inputs (AVIs, Signal Ground, 5v, etc.)
• Expansion Connector for Stock Cluster Outputs (Oil Pressure, Coolant Temp, Tach, Ground, Power, etc.)

Fitment Notes

2002-2007 Models (all types) are plug and play

2008+ models (all types) require tapping four wires at the body module because these are CANbus signals only at the gauge cluster. Directions for this are provided.

CANbus Equipped Vehicles

Swapping around electronic components on these vehicles may cause a domino effect of problems with other systems that rely on other components for information. Depending on the year and model of your car features lost by removing the cluster may include but are not limited to:

• DCCD

• Si-Drive

• AC

• MFD information

[ This kit does NOT include Haltech IC-7 Digital Dash ]
