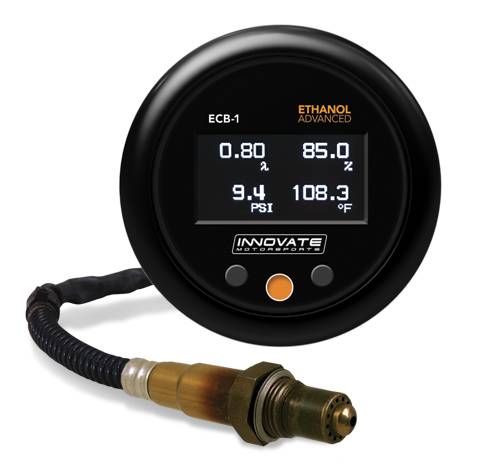

Innovate 4-in-1 Gauge: (BOOST) Ethanol Content & Air/Fuel Ratio Gauge

The Ethanol Advanced gauges combine our patented DirectDigital' O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand!

  • Four-in-one, ethanol content percentage, fuel temperature, boost pressure, and wideband air/fuel ratio gauge
  • Boost Vision - a real-time calculated approximation of your ECUs boost limit based on current ethanol content percentage
  • OLED user configurable display (one, two, or four channel viewing modes)
  • Warning indicator LED when actual boost exceeds target boost (user programmable)
  • Peak hold function
  • 4 BAR map sensor, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR)
  • 3-Configurable analog outputs for use with standalone and other programmable ECUs as well as external data loggers
$447.05
SKU
inn3906

The Ethanol Advanced gauges combine our patented DirectDigital O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand!

  • Four-in-one, ethanol content percentage, fuel temperature, boost pressure, and wideband air/fuel ratio gauge
  • Boost Vision - a real-time calculated approximation of your ECUs boost limit based on current ethanol content percentage
  • OLED user configurable display (one, two, or four channel viewing modes)
    • Ethanol %, Vacuum/Boost, Target Boost, Peak Boost, Fuel Temp, Air/Fuel ratio
    • °F or °C, AFR or Lambda, inHG, PSI, kPa, or BAR
    • On screen error reporting for ethanol content sensor and wideband O2
  • Warning indicator LED when actual boost exceeds target boost (user programmable)
  • Peak hold function
  • 4 BAR map sensor, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR)
  • 3-Configurable analog outputs for use with standalone and other programmable ECUs as well as external data loggers
    • Ethanol Content: 0v = 0%, 5v = 100%
    • Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)
    • Wideband Air/Fuel Ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 Lambda)
  • Pressure readings can be adjusted for altitude differences
  • 52mm (2 1/6) diameter gauge body with interchangeable faceplates and bezels: Black and silver bezel, black and white faceplates included
  • No PC required for configuration
  • Bosch LSU 4.9 wideband O2 sensor
  • Patented DirectDigital wideband sensor control, 100% digital wideband air/fuel ratio technology!
  • Wideband O2 Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)
  • Ability to calibrate O2 sensor for maximum accuracy
  • Innovate MTS serial in/out (for use with other Innovate & 3rd party MTS enabled devices to add additional logging channels)




WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.

More Information
SKU inn3906
Manufacturer's Part Number 3906
Brand Innovate Motorsports
Product Type Engine, Interior and Safety
Interior and Safety Gauges
