Radium Fuel Pump Hanger - GSS342 or AEM 50-1200 (S13)
$449.95
SKU
rad20-0730-00

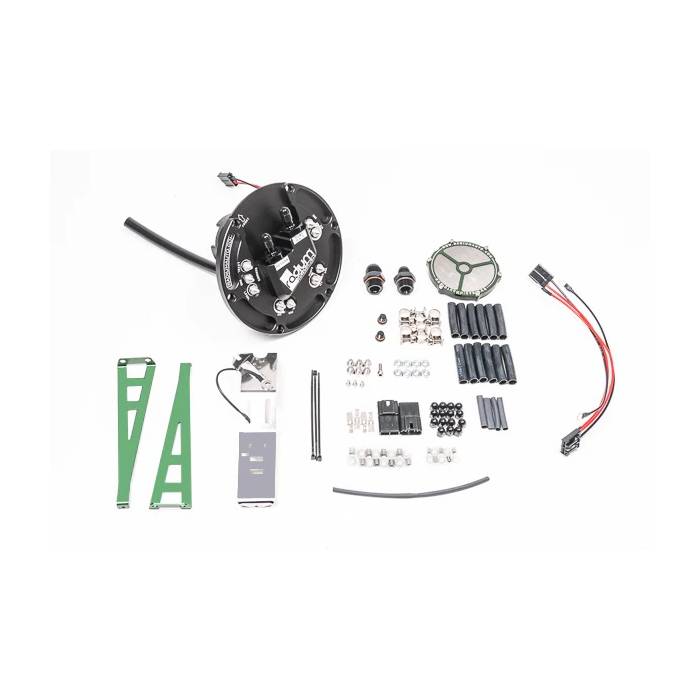

This Radium Engineering fuel pump hanger replaces the stock fuel pump module in the Nissan vehicles listed above. It can be configured with 1, 2, or 3 aftermarket fuel pumps to meet the fuel demands of various high performance engines. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.
The fuel pumps are positioned in the factory collector bowl. Fuel is drawn in through the mesh filter located at the bottom of the assembly. As shown below, fuel cannot pass between the 3 independent filtration chambers (A, B, C). If less than 3 pumps are installed, the empty port does NOT need to blocked off.
The functionality of the factory Nissan fuel level float and low fuel switch are retained. The fuel pump outlets merge into a single 8AN female port on the top plate. And because of the integrated check valves, fuel pump staging is permitted. The return port also uses a 8AN ORB female port on the top plate.
Adapter fittings are included for easy connection to the factory fuel lines. Also included in all variations of the kit are adapter fittings for connecting aftermarket AN style hoses. The fitting ports are machined low enough to clear the unibody sheet metal.
There are many different combinations of fuel pumps available described below. Choosing the pump(s) is based on the expected engine power output and the fuel type (gasoline, E85, etc.) The kit will have enough parts to run 1, 2, or 3 fuel pumps, but the user must supply their own compatible fuel pumps and some assembly is required.
ELECTRICAL
The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting.
Electrical hardware is included for the fuel pump(s) and sensors. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
FEATURES
- Drop-In Installation
- Anodized Aluminum Construction
- Merged 8AN ORB Female Pump-Out Port
- Barbs and 6AN/8AN Fittings Included
- 8AN ORB Female Return Port
- Permits 1-3 Aftermarket Pumps
- Compatible with Various Pumps
- High Current Electrical Hardware
- Stainless Steel Hardware and Clamps
- Gasoline, Methanol, and E85 Compliant
- New Anti-rotation Electrical Terminals
| Year Fitments | Nissan 240sx | Nissan Skyline | |
|---|---|---|---|
| 1989 | ✓ | ✓ | Excluded GT-R |
| 1990 | ✓ | ✓ | Excluded GT-R |
| 1991 | ✓ | ✓ | Excluded GT-R |
| 1992 | ✓ | ✓ | Excluded GT-R |
| 1993 | ✓ | ✓ | Excluded GT-R |
| 1994 | ✓ | ✓ | Excluded GT-R |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | rad20-0730-00 |
|---|---|
| Manufacturer's Part Number | 20-0730-00 |
| Brand | Radium Engineering |
