Walbro Hellcat 525LPH Fuel Pump

F90000285 Hellcat Flex Fuel HP Pump The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 500hp.

  • Highest flow in-tank brushed fuel pump offering from TI Automotive
  • Featuring award winning DCSS technology
  • E85 compatible
  • Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
  • High pressure relief setting — support supercharger and turbo applications
  • Capable of supporting 900+HP at 60PSI naturally aspirated applications
  • Flush mountable to existing hanger with installation kit 400-1168
SKU
F90000285
$166.66

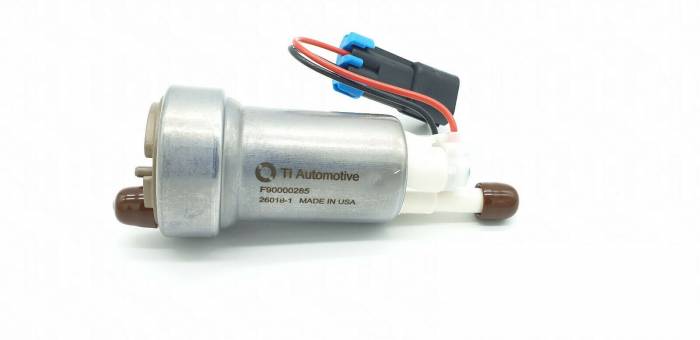

TI Automotive F90000285 Hellcat 39/50 Fuel Pump

Enjoy the highest output on today’s market with our new DCSS 39/50 fuel pump. Able to support an aggressive 700+ horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalelled performance

F90000285 Flex Fuel HP Pump The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 500hp.

  • Highest flow in-tank brushed fuel pump offering from TI Automotive
  • Featuring award winning DCSS technology
  • E85 compatible
  • Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
  • High pressure relief setting — support supercharger and turbo applications
  • Capable of supporting 900+HP at 60PSI naturally aspirated applications
  • Flush mountable to existing hanger with installation kit 400-1168



Specs

  • Fuel: GAS & E85
  • Horsepower: 900+ at 60PSI, naturally aspirated applications
  • Over All Pump Length: 131mm
  • Main Housing Diameter: 39mm
  • Lower Housing Diameter: 50mm
  • Fuel Inlet Diameter: 11mm OD
  • Fuel Outlet Diameter: 11mm OD
  • Flow Rate: 470lph @ 40psi (120+ gph)
  • Test Voltage: 13.5 Volts



Fitment

  • Universal

warning_symbolWARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.

More Information
SKU F90000285
Product Type Engine
Engine Fuel System
Brand Walbro
