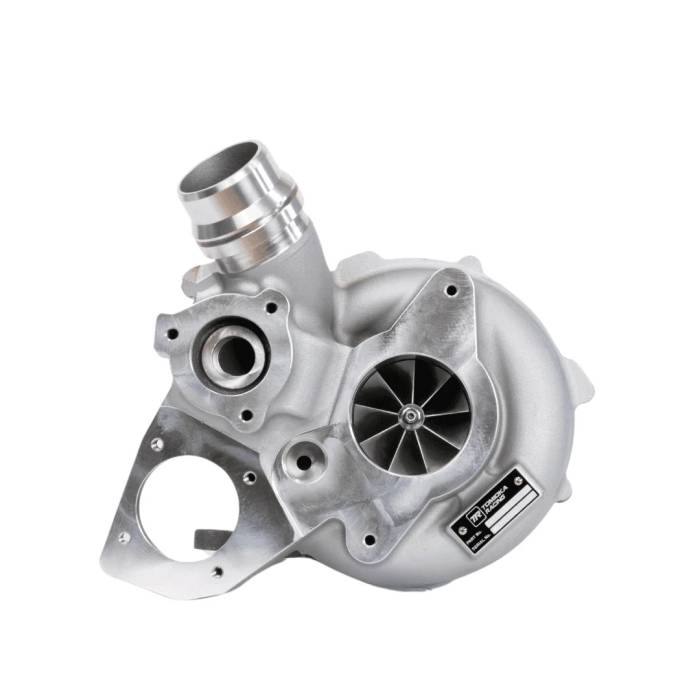

Tomioka Racing VB870 Ball Bearing Turbo (2022+ WRX)

Introducing the TR VB870 Turbo Upgrade for the 2022+ Subaru WRX—our largest, highest-flow direct-fit turbocharger for the FA24DIT platform. Designed as the step above the VB670 (TR-TS1055), the VB870 delivers significantly increased airflow capacity, greater top-end power potential, and the headroom needed for high-boost, high-horsepower builds. Despite its larger frame, the turbo retains direct OEM fitment for seamless, bolt-on installation with no modifications required.

At the core of the TR-TS1056 is a Ball Bearing CHRA engineered for rapid spool and excellent durability. The upgraded billet 9-blade compressor wheel, measuring 61.76mm on the inducer side and 76.68mm on the exducer, provides a substantial leap in airflow over both the OEM turbo and the VB670, enabling strong mid-range pull and exceptional top-end performance.

To support the increased compressor flow, the turbo is paired with a high-efficiency 60/55mm 9-blade turbine wheel, offering improved exhaust flow capability for high-boost applications. The lightweight, point-milled billet aluminum wheel enhances strength and responsiveness, ensuring fast spool characteristics relative to its size.

Professionally assembled and VSR-balanced, the VB870 is built to withstand demanding street and track use while providing the performance ceiling required for serious FA24DIT builds.

Product Features

• Direct OEM Fitment: Bolt-on installation, no modifications required for 2022+ Subaru WRX FA24DIT. Fits all aftermarket intakes and intake inlet adapters that are made to fit the OEM turbo.
• Ball Bearing CHRA: Provides faster spool, durability, and high-boost performance.
• High-Performance Billet Compressor Wheel: 61.76mm inducer, 76.68mm exducer, 9-blade design for significantly increased airflow.
• Durable Turbine Wheel: 60mm inducer, 55mm exducer, 9-blade design for efficient exhaust flow and high-power capability.
• Lightweight Billet Wheel: Strong, lightweight design for improved reliability and responsive spool.
• Professionally Assembled & VSR Balanced: Ensures longevity and reliability under high-stress conditions.

Turbo Specifications

• Compressor Wheel Inducer
  61.76mm (vs. OEM 44mm)

• Compressor Wheel Exducer
  76.68mm (vs. OEM 60mm)

• Turbine Wheel Inducer
  60mm (vs. OEM 54mm)

• Turbine Wheel Exducer
  55mm (vs. OEM 44mm)

• Bearing System
  Dual Ball Bearing

• Wheel Construction
  Lightweight Point Milled Billet Aluminum

• Assembly Balance
  VSR Balanced

VB670 vs. VB870 – What’s the Difference?
Tomioka Racing now offers two performance levels for the 2022+ Subaru WRX FA24DIT platform:

• VB670 (TR-TS1055): Fast-spooling performance turbo designed for strong street power and quick response. Ideal for stock-location builds targeting balanced daily driving and performance.
• VB870 (TR-TS1056): Larger-frame, higher-flow turbo designed for high-boost, high-horsepower setups. Ideal for customers seeking significantly more top-end power and additional tuning headroom.
  In short, the VB670 offers excellent response and drivability, while the VB870 delivers the airflow and capacity needed for the highest power builds on the FA24DIT platform.
