TiC - Shift Linkage Bushings (04-05 STI)

TURN-IN CONCEPTS  TiC 04-05 STI Subaru Shift Linkage Bushings

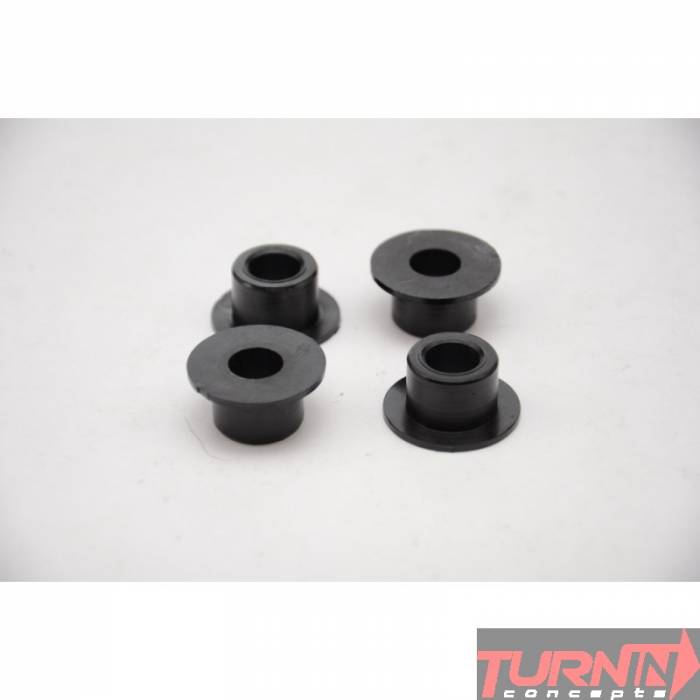

TiC shift linkage bushings for 2004 - 2005 STI is made polyurethane. These bushings will help tighten up the shifter assembly. So you will have cleaner shifts and not have those miss shifts from 2nd to 3rd.
SKU
1001-01-0001
$30.00

If you have ever missed a 2-3 shift due to slop in the stick then this is your solution. The first innovative new product direct from TiC are these shift linkage bushings for the 2004 and 2005 USDM Subaru Impreza WRX STi. These bushings will help eliminate the free play of the shifter leading to an overall better feel of the stick and making the gear selection "click" into place.
To better understand what these do you have to understand the shortcomings of the stock linkage bushings. Between the shifter linkage arm and the control arm going into the transmission is a joint. It is this joint that is causing the lateral play in the stick. The stock joint is made of a u-joint assembly consisting of two tubes welded at right angles. In these tubes are the bushings. Inserted into these bushings are sleeve bearings, and running through the sleeve bearings are the bolts that hold the whole u-joint between the linkage arm fork and the control arm fork. In the stock configuration, there are two places in this joint that create play in the system. The first is the clearance gap between the bolt and the sleeve bearing. The second is the gap between the sleeve bearing and the bushings. It is that second point that our bushings address. Over time the soft rubber bushings compress which translates to a greater amount of slop at the end of the stick. Our bushings are made from polyurethane and are designed with much tighter tolerances than the stock bushings. The tighter tolerances ensure significantly less slop over stock, while the polyurethane compound we use is much more resistant to compression, but at the same time compliant enough to keep NVH at an acceptable level.



warning_symbolWARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.

More Information
SKU 1001-01-0001
Product Type Drivetrain
Drivetrain Shift Linkage and Bushings
Brand Turn-In Concepts
