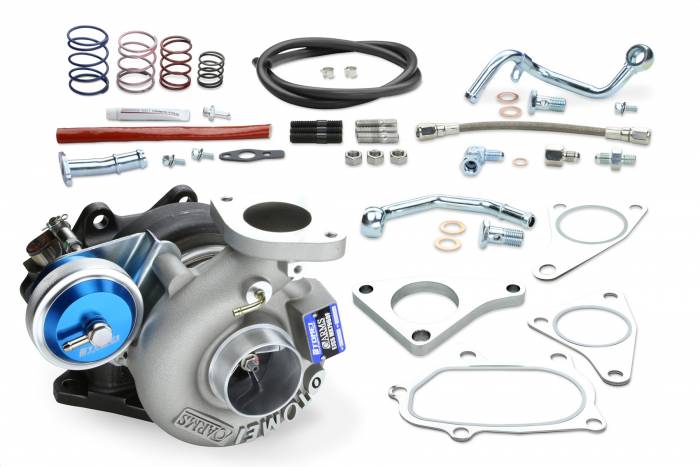

Tomei ARMS MX7960F Journal Bearing Turbo - Single Scroll (08-14 WRX, 02-09 LGT)

$1,422.00

SKU

TB401A-SB01D

CNC BILLET COMPRESSOR WHEEL
Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface area for significantly improved airflow and turbo spool.

MULTI RATE BILLET ACTUATOR
Large capacity, reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.

CNC Billet Compressor Wheel
6-Blade Compressor Wheel
11-Blade Turbine Wheel
Multirate Billet Actuator
MX7960 Rated @ 400HP

J/B TURBOCHARGER KIT ARMS MX7960F EJ SINGLE SCROLL
TARGET HP (HP)	400
BEARING TYPE	JOURNAL BEARING
INITIAL BOOST SETTING (kgf/cm2)	1.0

COMPRESSOR WHEEL
ⒶIND(mm)	52.6
ⒷEXD(mm)	76.2
TRIM	52
BLADES	6/6
MATERIAL	A2618
PRODUCTION	CNC BILLET

TURBINE WHEEL
ⒸEXD(mm)	58.8
ⒹIND(mm)	67.0
TRIM	77
BLADES	11
MATERIAL	K418
PRODUCTION	CAST

COMPRESSOR HOUSING
IND(mm)	55.8
EXD(mm)	41.5
A/R	0.78

TURBINE HOUSING
IND(mm)	45.0
EXD(mm)	EJ
A/R	0.57

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

BEARING TYPE

JOURNAL BEARING

INITIAL BOOST SETTING
MX7760	1.0 kgf/cm2
MX7960	1.0 kgf/cm2
MX8265	1.0 kgf/cm2
MX7960F	1.0 kgf/cm2

COMPRESSOR WHEEL

TURBINE WHEEL

	MX7760	MX7960	MX8265	MX7960F
Ⓐ IND(mm)	52.6	52.6	54.8	52.6
Ⓑ EXD(mm)	68.0	68.0	76.2	68.0
TRIM	60	60	52	60
BLADES	6	6	6	6
MATERIAL	A2618
PRODUCTION	CNC BILLET

	MX7655	MX7690	MX8265	MX7960F
Ⓒ EXD(mm)	49.1	54.0	58.8	54.0
Ⓓ IND(mm)	56.0	61.0	67.0	61.0
TRIM	77	79	77	79
BLADES	12	11	11	11
MATERIAL	K418
PRODUCTION	CAST

COMPRESSOR HOUSING

TURBINE HOUSING

	MX7760	MX7960	MX8265	MX7960F
IND	53.6	53.6	55.8	53.46
EXD	41.63	41.63	41.5	44.2
A/R	0.78	0.78	0.78	0.78

	MX7760	MX7960	MX8265	MX7960F
IND	45.0	45.0	45.0	45.0
EXD	EJ	EJ	EJ	EJ
A/R	0.57	0.57	0.57	0.57

Vehicle Fitment

2008 - 2014 Subaru WRX
2005 - 2009 Subaru Legacy GT
