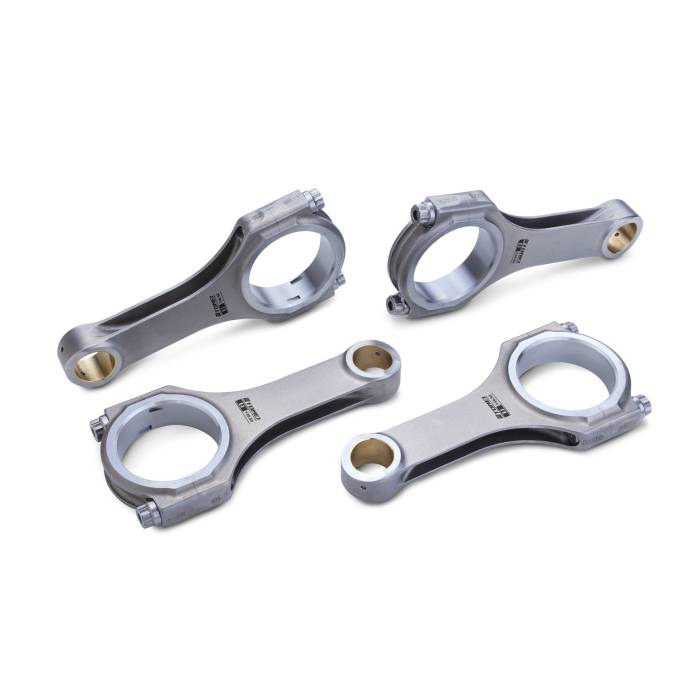

Tomei Forge H-Beam Connecting Rod - STD Size - 130.50mm (EJ20/EJ25)
$648.00
SKU
TA203A-SB01A
Transmits the reciprocating motion of the pistons to the crankshaft and converts it into rotary motion.High strength is required to receive large amount of pressure from the pistons.
LIGHT WEIGHT AND HIGH RIGIDITY
Resistant to torsion and has achieved reduction in weight while maintaining the same strength as I beam design.
RIGIDITY OF THE BIG END IMPROVED BY SLANT DESIGN
The shoulder shape is smoothed by making the connecting rod bolts a through bolt type and improving the rigidity of the big end.
RIB SHAPED CAPS
The rigidity of the connecting rod caps is increased by the two ribs and preventing bearing failure due to deformation of the big end.
Large diameter dowel pin
Bearing failure from deformation of the big end is prevented by keeping the high rigidity of the big end with large diameter dowel pin.
OIL SUPPLIED BY 2 PORTS TO THE SAMLL END
Seizing failure is prevented by increasing the amount of oil supplied, and the offset placement increases strength against pulling at high revolution.
HIGH STRENGTH ARP L19 BOLTS
The fatigue strength and tenstile strength are increased compared to the general ARP2000, and the big end is joined more firmly.
| Application | EJ20/EJ25 | |
| C-to-C (mm) | 130.50 (OEM ±0.0) | |
| BE.BORE×WIDTH(mm) | 55.0×21.4 | |
| PE.BORE×WIDTH(mm) (Bush inner cir) |
23.0×21.4 | |
| MATERIAL | SNCM439 | |
| BOLT | ARP L19 3/8-24 40.0mm |
|
| BEARING SIZE | INNER DIA. 52.0mm WIDTH 16.5mm |
|
| WEIGHT (g) | 552.0 | |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | TA203A-SB01A |
|---|---|
| Manufacturer's Part Number | TA203A-SB01A |
| Brand | Tomei |
