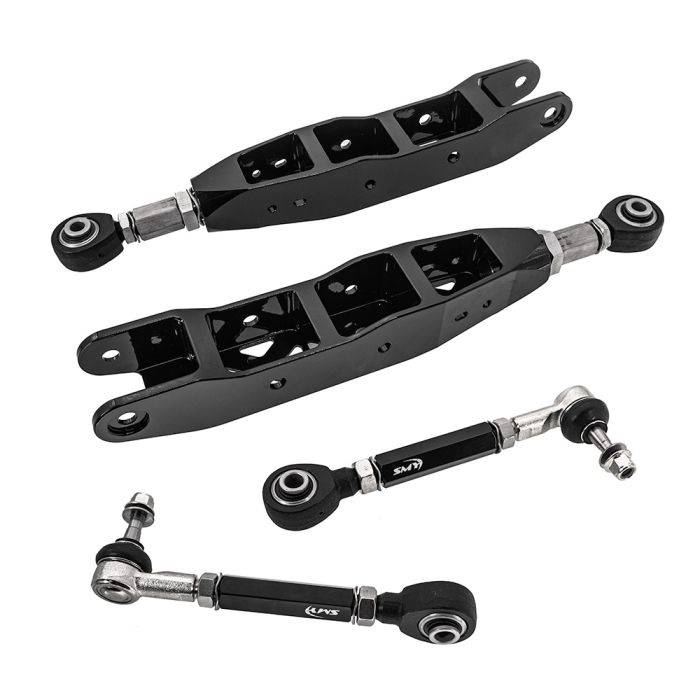

SMY CNC Aluminum Lower Control Arms & Toe Kit - Pillow Ball Bushings (08-21 WRX/STI, 2013+ BRZ)
$640.00
SKU
SMY-SUS-CTK-CNC-GR
Here you will find the upgraded SMY LCR kit. Our previous version was made from Steel. This new version has been completely reworked, resigned, and over-engineered to allow us to offer a LIFETIME warranty. CNC from high-grade aluminum, ours is lighter than the previous-gen (all Steel) by 2lbs each. The bushings have been upgraded to a thicker more robust to prolong life as well as comfort.
Features
- Material = Aluminum
- Adjustable Pillowball Ends
- Bushings Durometer Rating = 80
- Color = Gloss Black
- Location = Lower Rear
- Control Arms Camber Adjustment Range = +12mm to -12mm
- Control Arms have NEW Stronger Mounts
- Toe Arms Adjustment Range = +/- 3 Degrees
- UPGRADED Control Arm Ends STRONGER Better Same Price
Includes:
- 2 x Aluminum Rear Control Arms (1 Pair)
- 2 x Steel Toe Arms (1 Pair) = SMY-SUS-TOE-GR
- Hardware
- SMY Decals
- Lifetime Warranty
Installation:
- Control Arm Endlink bolts = 34 Foot-lbs
- Control Arm All 3 other points = 89 Foot-lbs
- Toe Arms Subframe Side = 74 Foot-lbs
- Toe Arms Other End = 44 Foot-lbs
- Alignment is highly Recommended after installation
- TO PROPERLY TORQUE DOWN SUSPENSION THE PARTS MUST BE UNDER FULL LOAD, NOT SUSPENDED IN THE AIR
| Year Fitments | Subaru WRX | Subaru STI | Subaru BRZ |
|---|---|---|---|
| 2008 | ✓ | ✓ | |
| 2009 | ✓ | ✓ | |
| 2010 | ✓ | ✓ | |
| 2011 | ✓ | ✓ | |
| 2012 | ✓ | ✓ | |
| 2013 | ✓ | ✓ | ✓ |
| 2014 | ✓ | ✓ | ✓ |
| 2015 | ✓ | ✓ | ✓ |
| 2016 | ✓ | ✓ | ✓ |
| 2017 | ✓ | ✓ | ✓ |
| 2018 | ✓ | ✓ | ✓ |
| 2019 | ✓ | ✓ | ✓ |
| 2020 | ✓ | ✓ | ✓ |
| 2021 | ✓ | ✓ | |
| 2022 | ✓ | ✓ | |
| 2023 | ✓ | ✓ | |
| 2024 | ✓ | ✓ |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | SMY-SUS-CTK-CNC-GR |
|---|---|
| Brand | SMY Performance |
