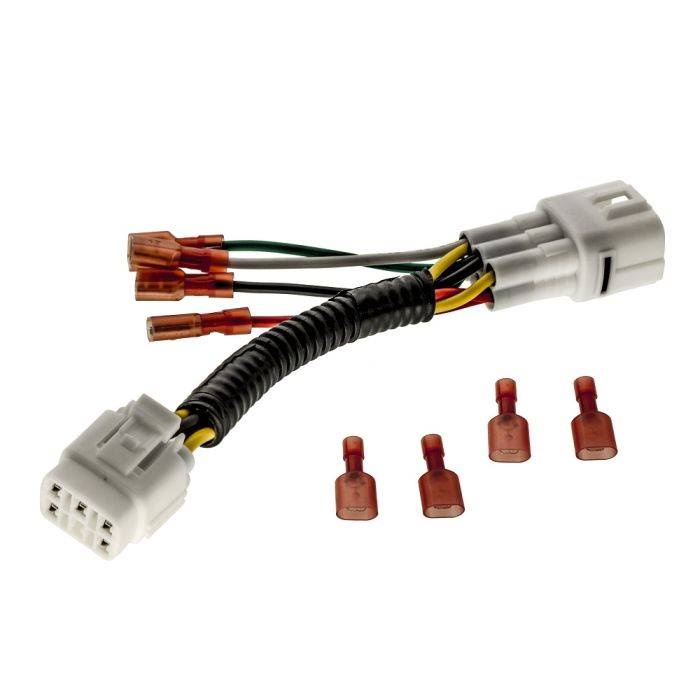

SMY Rear Brake Light PNP Harness - Including Reverse (22+ WRX)
$29.99
SKU
SMY-PNP-RBLVB
This harness speeds up the installation process for and Rear Brake Light kit. This harness does not regulate light output or change the functions of the rear brake light. This harness comes with 4 wire connectors. Ground, Brake, DRL Function and Reverse Light. Not all wires have to be used to work. As long as the ground and another function is used the plugged in function will work.
Features:
- PNP Harnesses = Prevents the need to splice into your OEM harness. Just unplug the harness that connects to your tail light and add this in between the tail light and OEM harness
- Speed up installation
Includes:
- 1 x PNP Harness
- 4 x Female Plug Connectors
PNP Wiring Guide:
- Black = Ground (-)
- Red = Parking / Running Light (+)
- Green = Brake Light (+)
- White = Reverse
Applications:
2022-2025 WRX
| Year Fitments | Subaru WRX |
|---|---|
| 2022 | ✓ |
| 2023 | ✓ |
| 2024 | ✓ |
| 2025 | ✓ |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | SMY-PNP-RBLVB |
|---|---|
| Brand | SMY Performance |
