Radium Port Injection Kit (16-18 Focus RS)
The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head and permits the use of
The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head and permits the use of port injectors to add additional fuel for high-horsepower Ford EcoBoost engines. This kit does NOT replace the OEM direction injection system.

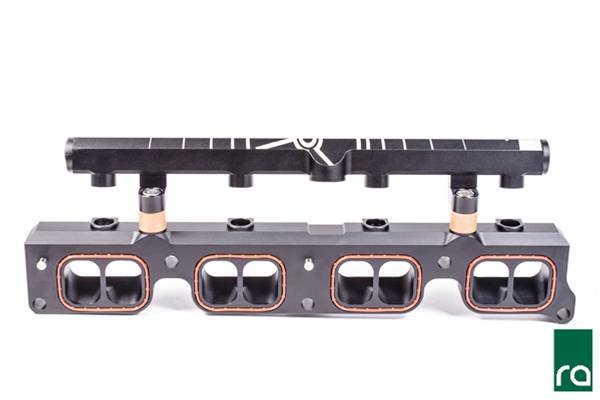

The kit includes the PIK adapter plate, custom fuel rail, fuel rail mounting hardware, and OEM Ford gaskets. Stainless steel dowels are pressed into the adapter plate to make alignment during installation easier. It is compatible with all fuel types including popular alcohol mixtures such as E85.
The 6061 CNC machined aluminum adapter features a smoothed port divider promoting laminar flow into the combustion chambers. The injector spray pattern is divided evenly into each runner. The angled air flow passages through the PIK adapter plate are CAD matched to the intake ports and manifold to minimize any impact to air flow through the ports.
The fuel rail features a large 0.69" internal diameter bore. It is CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish. All 3 ports (ends and center) are machined with an 8AN ORB (3/4-16 female) port. Machined phenolic mounting spacers and washers are included to completely isolate fuel created by the cylinder head and transferred through the mounting bolts. The injectors are at a max angle to ensure proper spray into the ports.
Special CNC machined aluminum adapter brackets are included to relocate the mounting grommets. This allows the OEM Ford Focus Engine Covers to be reused for a stealth appearance.
This kit is designed for specific upper and lower O-ring spacing, as depicted below. The upper and lower injector O-rings must be 14mm diameter. Consult the fitment guide before purchasing injectors.
$360.95
SKU
rad20-0326
All Radium products are carefully planned with thorough R&D and designed in-house using the latest computer simulation and modeling techniques. Extensive testing and evaluation ensures the performance of Radium products exceed consumer expectations. For these reasons, top motorsports competitors and enthusiasts worldwide rely on Radium Engineering products.
Currently, Radium offers an expanding collection of motorsport parts and accessories for high performance and racing, focusing on their revolutionary fuel surge tank line and PCV oil catch can systems. A growing collection of application specific parts are also being created. Please contact Radium for more information.
Vehicle Fitment
- 2016 - 2018 Focus RS
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.
| SKU | rad20-0326 |
|---|---|
| Manufacturer's Part Number | 20-0326 |
| Brand | Radium Engineering |
| Product Type | Engine |
| Engine | Fuel System |
