Process West Intake Manifold (2022+ WRX)
$2,800.00
SKU
PRW-PWIM010

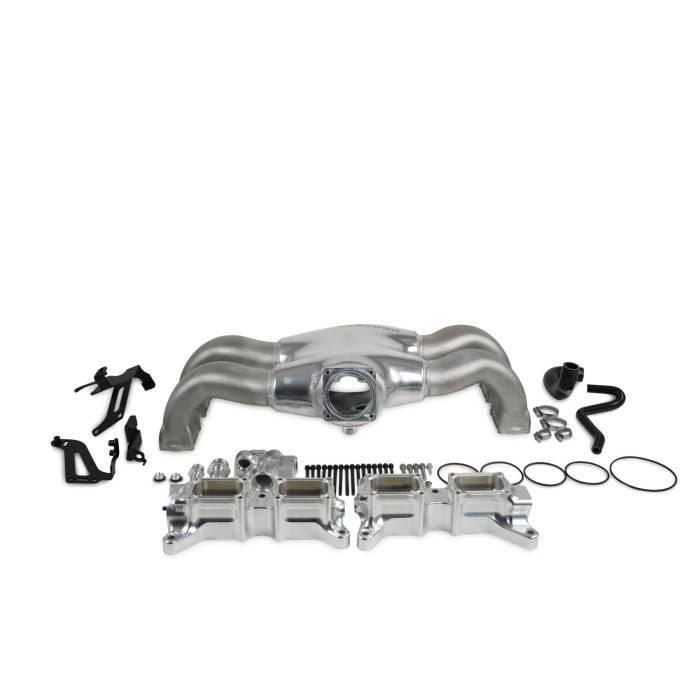

Designed for the MY22+ FA24 WRX, the Process West Intake Manifold comprises of a mix of billet plenum, cast large bore runners along with a fully operational billet Tumble Generator Valve (TGV) section to achieve the highest intake flow rates possible.
Process West is the first to develop an Intake Manifold for the FA24.
After over 12 months of development and testing on the in-house WRX, Process West have engineered a product that delivers proven performance gains with flawless fitment.
Power improvements are achieved through precision computer-designed internal porting, increased plenum volume, and larger runner capacity — optimising airflow for maximum cylinder filling and engine performance.
Even greater performance gains can be achieved on tuned FA24 engines. Testing by Process West shows that the higher the power output, the greater the gain!
The Process West FA24 Intake Manifold includes a fully integrated TGV section, as the factory manifold is a one-piece design with a non-removable TGV system.
Designing a standalone intake manifold was not possible without also re-engineering the TGV system.
As a result, Process West developed a complete billet intake manifold featuring a fully functional TGV section with operational shafts and butterflies.
No Check Engine Light.
The Process West FA24 intake manifold not only delivers performance enhancements but is also part of the Process West 'NO CEL' range, ensuring easy installation without triggering a Check Engine Light.
Application And Compatibility.
The Process West FA24 Intake Manifold installs easily with no custom fabrication required.
Please note, it must be used with a front-mounted intercooler, as the new throttle body position is lower and closer to the firewall than the factory design, making top-mounted intercoolers incompatible.
This new throttle body position also means many front-mount kits will not be compatible without the Process West Throttle Adapter Pipe (PWIM010AP). If you currently have a Process West Front Mount Intercooler Kit, this adapter pipe is also required, as the piping route of the original kit will not align with the new throttle body position.
For those with alternative aftermarket front mount intercoolers, this adapter pipe includes multiple hose joint options, giving you more flexibility for an easy fitment.
| Year Fitments | Subaru WRX | ||
|---|---|---|---|
| 2022 | ✓ | ||
| 2023 | ✓ | ||
| 2024 | ✓ |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | PRW-PWIM010 |
|---|---|
| Brand | Process West |
