Kartboy Gravel Shift Knob Kit

The Gravel Shift Knob Kit is built on Kartboy's StackLock platform. This modular knob is built around a threaded stainless steel core. The topper and trim ring thread onto the core and can be swapped later for other Gravel or Tarmac toppers and trim ring colors.

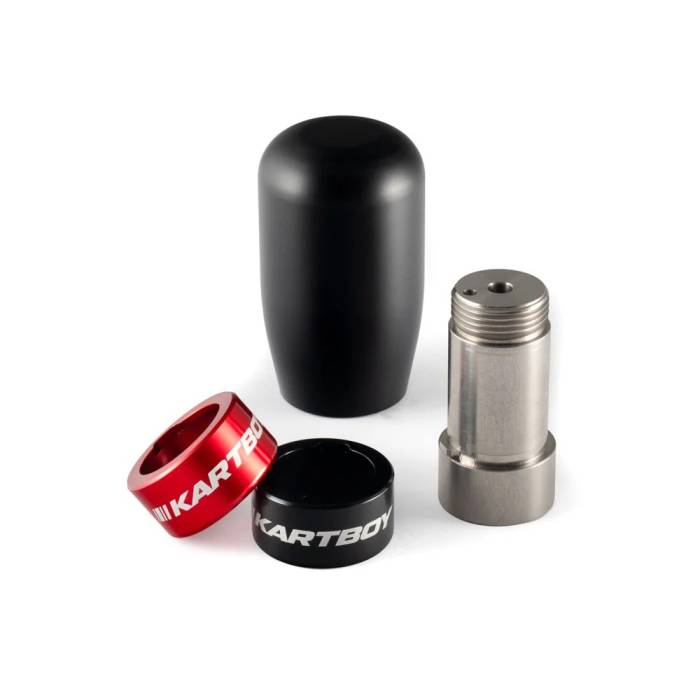

This kit pairs a black Delrin Gravel (cylinder) topper with a 303 stainless steel core. The stainless core gives the knob a weighted feel.

The core has a hidden internal 1/2" drive, so you can hold the core with a standard 1/2" drive tool while installing or removing the topper. No special tools are needed.

An internal set screw in the core lets you clock the knob on the shifter so the topper sits at the orientation you want.

The trim rings are machined from billet 6061-T6 aluminum and anodized. A locating tooth on each ring keeps it in the correct position during assembly. Two rings are included, black and red, and other colors are sold separately.

Specifications

• Core: 303 stainless steel
• Trim ring: 6061-T6 aluminum, anodized
• Diameter: 40.64 mm (1.60")
• Total height: 86.35 mm (3.40")
• Weight: 224 g (0.49 lb)

Included

• Delrin Gravel topper
• Stainless steel StackLock core
• Black trim ring
• Red trim ring
• Kartboy packaging
