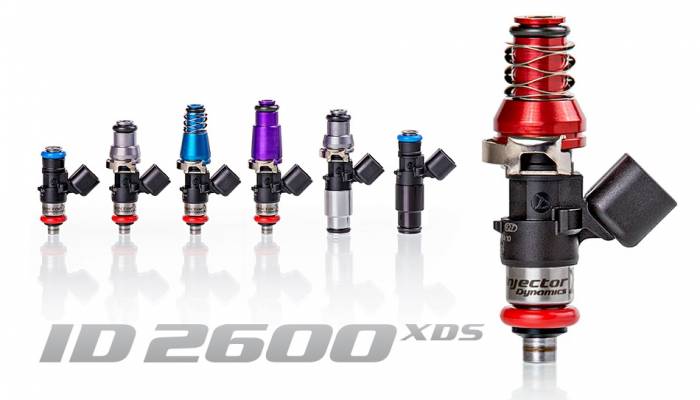

Injector Dynamics ID2600-XDS (07-21 STI, 02-14 WRX, 07-11 LGT)

The ID2600-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport.

The ID2600-XDS was developed specifically for use with liquid fuels, featuring corrosion resistant internals, and long term compatibility with ethanol and methanol.

The ID2600-XDS has the highest flow rate of any injector offered by Bosch, and flows 50% more than the ID1700x.


The ID2600-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.

What is Dual Slope Matching?

Dual Slope Matching is a method of matching injectors that provides the best possible cylinder to cylinder fueling across the entire operating range.

Traditionally, injectors were matched based on static flow rate alone, which resulted in large deviations at low pulse widths.

Injector Dynamics introduced Slope Intercept Matching over a decade ago, which provided even cylinder to cylinder fueling across the linear operating range of the injector.

With the progression of turbo technology, and increased use of alcohol fuels, greater demands are placed on fuel injectors, and they are often required to deliver fuel well outside of their linear operating range.

The concept of Dual Slope Matching extends the injector matching into the lower non linear operating range. Dual Slope Matching was conceived by Aaron Looft of Injector Dynamics, who was inspired by the dual slope injector characterization model used by Ford.

Basic Specifications
  • Nominal Flow Rate – 2600cc/min @ 3.0 Bar (43.5 psi)
  • Maximum Differential Fuel Pressure – 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
  • Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
  • Electrical Connector – USCAR
$1,449.00
SKU
idx2600.48.11.WRX.4



At Injector Dynamics, we are proud of our position as the technological leader, and proud of our ability to function at the same high level as the auto manufacturers. To date, we are the only motorsport injector supplier providing emissions compliant high flow injectors to OE manufacturers. Namely, the twin turbo Noble M600 which meets strict European emissions specifications. We are also the only supplier to have earned the title of authorized technical partner with the largest automotive supplier in the world.



Vehicle Fitment

  • 2007 - 2021 Subaru STI
  • 2002 - 2014 Subaru WRX
  • 2007 - 2011 Subaru Legacy GT




WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.

More Information
SKU idx2600.48.11.WRX.4
Manufacturer's Part Number 2600.48.11.WRX.4
Brand Injector Dynamics
Product Type Engine
Engine Fuel System
