IAG Big Bore 76mm Throttle Body w/ Electronics & Adapter for OEM STI / Cosworth Intake Manifolds
n the hunt for more than 600 horsepower Subaru owners can be limited by their OEM throttle body. The OEM units just aren't big enough to meet the demands of larger upgraded turbochargers. For years those who were seeking to upgrade this component were forced to use inferior aftermarket alternatives. These aftermarket throttle bodies were prone to issues like sticking, poor idle quality, and difficult installation. IAG is pleased to announce that these owners are no longer forced to compromise drivability for horsepower. With the introduction of our new adapter plates owners are able to upgrade their OEM throttle bodies with a larger OEM quality unit.
The Big Bore throttle body offers a 76mm bore which nearly 25% larger over stock. Best of all, the installation is much easier than other options previously available. Simply drill out the rivets holding the motor to your OEM Subaru throttle body, remove the motor assembly, and install it to the supplied throttle body using the provided replacement rivets. No complicated disassembly, no springs, and the OEM connector is plug and play.
The IAG adapter plate is designed specifically to work with the OEM STI or Cosworth Intake Manifold. The plates are machined from 6061 aluminum, and feature an O-ring sealing surface. Each package includes a brand new Big Bore 76mm Throttle Body, IAG adapter plate, and all the necessary hardware to complete the installation. The adapter plates are available in anodized black or natural silver finish.
Fits *2004-20 Subaru STI, 2006-07 WRX, and the 2004-08 Forester XT. The 2004 STI requires a riveted throttle body. Confirm throttle body style and consult with your tuner before ordering.
Warranty
- *No Returns on electronics including Big Bore Throttle Body.

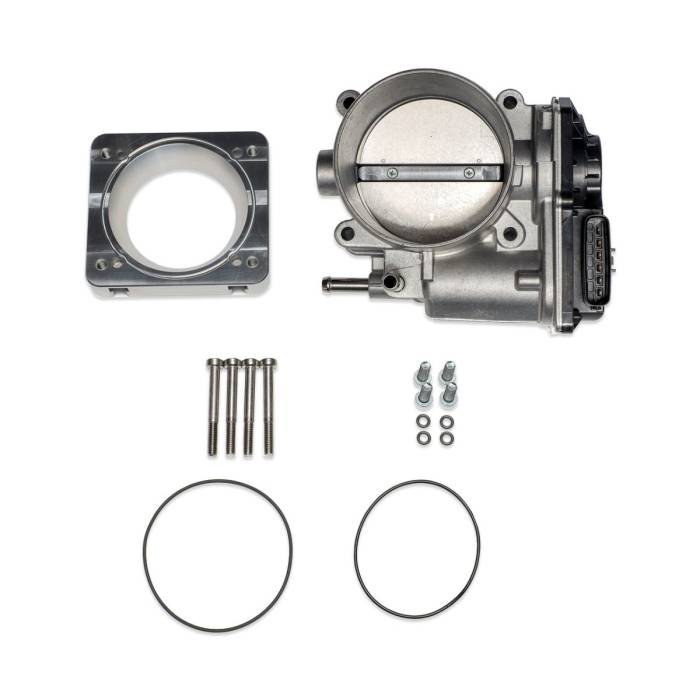

Package Includes
- (x1) Big Bore 76mm Throttle Body
- (x1) IAG Aluminum Adapter Plate
- (x4) M6x50mm Low Profile Socket Head Cap Screws
- (x4) M6x20mm Low Profile Socket Head Cap Screws
- (x4) Small O-rings
- (x2) Large Adapter Plate O-rings
- (x7) Rivets
As low as
$379.99
Only %1 left
SKU
IAG-AFD-2027
IAG (Integrity Auto Group) was established in 2004, initially selling high quality used performance cars. Within a year and a half, IAG sold over 200 Subaru WRX / STI’s. Our clients began requesting us to provide performance products and services for their Subaru’s, which we quickly catered to. IAG extended these services and parts nationally by 2007. Fast forward to 2019, IAG Performance is known as a leader in the automotive performance industry (specifically Subaru) and carries an impeccable reputation among our clients and peers.
Fitment Notes
- Intended for vehicles making 600+ HP with front mount intercoolers.
- ECU calibration is required - Consult with your Tuner before ordering.
- Requires throttle body with rivets attaching the motor. Not compatible with clip style throttle body.
- Custom piping / fabrication may be required for installation.
- Not compatible with OEM style MAP sensors
