Haltech Nexus R5 - Universal
NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
FEATURES
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
- 18 x peak/hold injector drivers (can be used as low side drive outputs)
- 12 x low current ignition outputs (can be used as low side drive outputs)
- 8 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 2 x onboard wideband controllers, supporting NTK and LSU4.9
- 3 x CAN ports with switchable termination
Suits: Racing application where advanced race features, data logging and power management control is required.

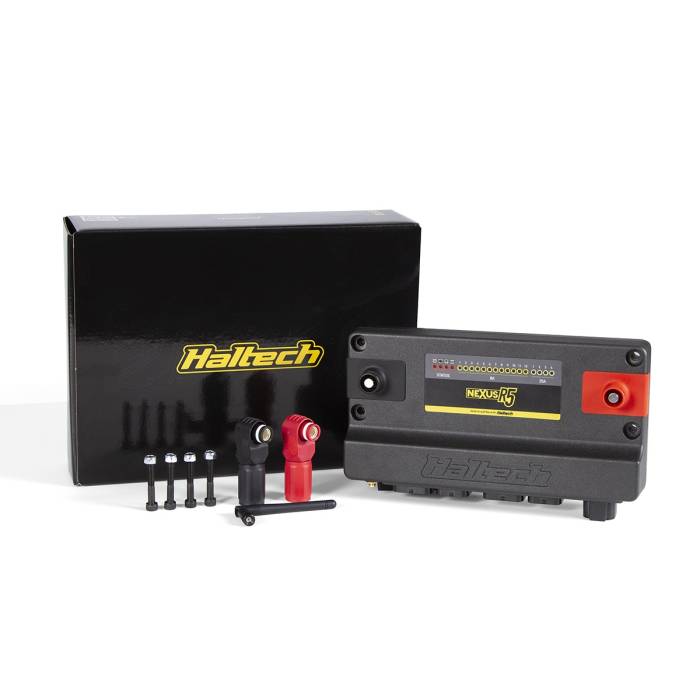

Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap, USB drive with NSP Software. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4.
[ This is for motorsports use only, and this is never to be used in a street car that is driven on the street. ]
**Special Order**
As low as
$4,300.00
Only %1 left
SKU
Haltech Nexus R5 - Universal
Haltech has been at the cutting edge of engine management technology since it first opened its doors in 1986. Today, Haltech ECUs are sold in over 50 countries around the world. They are the driving force behind many record-setting race vehicles. Haltech branches in the UK, Europe, New Zealand and United States ensure the products are processed, delivered and supported in every corner of the globe.
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.
| SKU | Haltech Nexus R5 - Universal |
|---|---|
| Brand | Haltech |
| Product Type | Engine |
| Engine | Electronics and Sensors |
