Haltech CAN Keypad 15 Button (3x5)
The Haltech CAN Keypad is a plug and play control solution for your Haltech system. With soft touch, ergonomically designed buttons, the Haltech CAN Keypad is easy to use and simple to configure. Available in 2x4 and 3x5 configurations, the keypad expands the functionality of your Haltech ECU by adding extra inputs. Vibration and impact resistant (IP67 rating) these keypads are rugged, robust and ready for action! Dimmable backlight and LED indicator lights add clarity and tastefully blend with any car interior.
FEATURES
- Plug’n’Play with Haltech ECUs using the NSP software
- Environmentally sealed to IP67
- Fully programmable, backlit buttons
- 140 Custom button labels
- 3 LED status indicators per button
- Operating temperature: -40C to 85C (-40F to 185F)
- Short circuit, reverse polarity protection

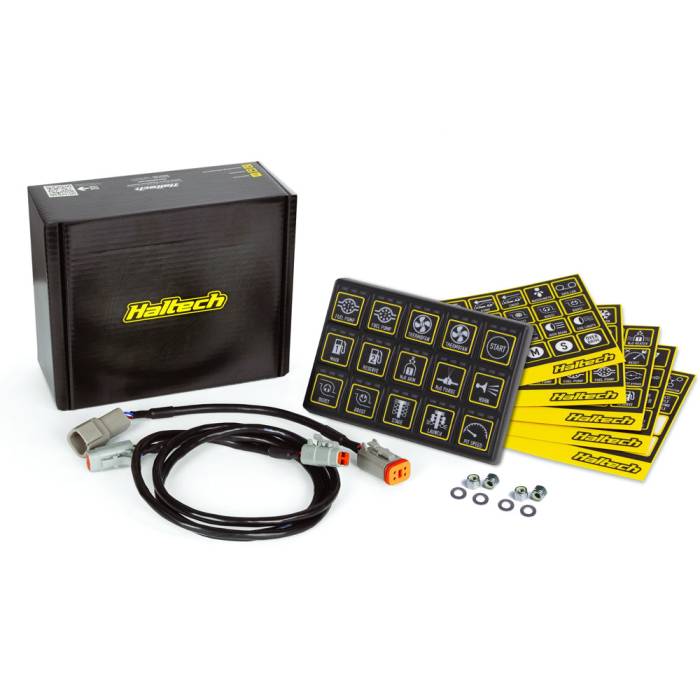

INCLUDED
- Haltech CAN Keypad 3 x 5 (HT-011502)
- Hatech Keypad Label Set - Includes 140 individual labels (HT-011500)
- DTM-4 to DTM-4 CAN Cable 1200mm (HT-130025)
- DT-4 to DTM-4 CAN Adaptor Cable 200mm (HT-130045)
- Mounting Hardware: nut and washer set
- Quick Start Guide
**Special Order**
$417.00
SKU
halHT-011502
Haltech has been at the cutting edge of engine management technology since it first opened its doors in 1986. Today, Haltech ECUs are sold in over 50 countries around the world. They are the driving force behind many record-setting race vehicles. Haltech branches in the UK, Europe, New Zealand and United States ensure the products are processed, delivered and supported in every corner of the globe.
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.
| SKU | halHT-011502 |
|---|---|
| Manufacturer's Part Number | HT-011502 |
| Brand | Haltech |
| Product Type | Engine |
| Engine | Electronics and Sensors |
