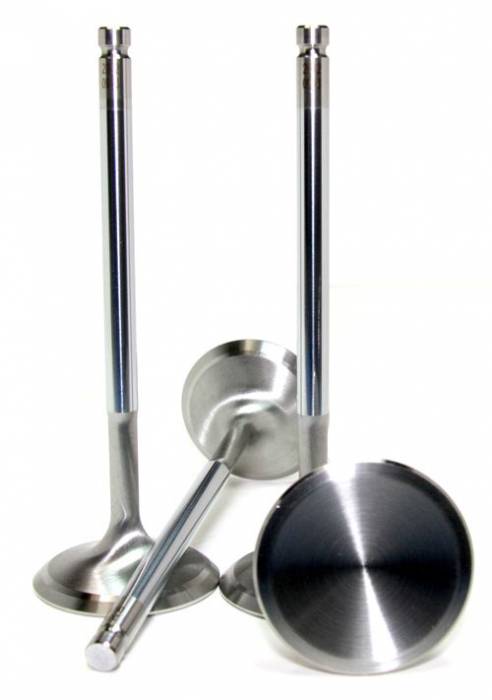

GSC Exhaust Valves - 30mm +1mm (FA20DIT)

When creating our new valve line we set out to create the best performance, longest lasting valves available to the aftermarket. Using advanced 3D design and simulation software, we have created a stronger and higher flowing valve head design. We flow test prototype valve heads in the specific applications to make sure we have the highest flowing valve head available on the market today. With the materials used, we have less valve distortion at the face than any of the tested designs. Less distortion allows for better sealing under extreme conditions and more consistent performance throughout the life of the valve. GSC Power-Division's new valves are sure to become the industry standard for sport compact performance valves.



  • +1mm Size - 30mm Exhaust Valve



Comes in a full set of 8 valves

$153.90
SKU
GSC2283-8



GSC Power-Division was started to fill the need for high-quality performance camshafts and valve train components for the Japanese sport compact cars of today. With little worthwhile offerings in the market, and a passion for quality and performance, GSC offers cutting-edge designed camshafts and valve train components that are lighter and handle the most extreme conditions of the turbo sport compact engine.

When creating our new valve line we set out to create the best performance, longest lasting valves available to the aftermarket. Using advanced 3D design and simulation software, we have created a stronger and higher flowing valve head design. We flow test prototype valve heads in the specific applications to make sure we have the highest flowing valve head available on the market today. With the materials used, we have less valve distortion at the face than any of the tested designs. Less distortion allows for better sealing under extreme conditions and more consistent performance throughout the life of the valve. GSC Power-Division's new valves are sure to become the industry standard for sport compact performance valves.



Stem Diameter (mm) Overall Length (mm) Head Diameter (mm)
5.50 97.90 30



Valve Features

  • Swirl polished heads for smoother air flow over the valve
  • Back cut to reduce valve weight for higher RPM, higher boost pressure, and allow for more aggressive cam profiles without increasing valve spring seat pressures
  • Valve stems are micro polished to allow for less oil retention on the stem, which creates less drag on the stem to guide for a smoother motion
  • Intake valves are a modified 21-4n stainless and exhausts are a modified 23-8n stainless material for high heat capacity while maintaining longevity



  • Valve tips are either hardened or have a stelite wafer tip fused so that the tip is within 5 Rockwell C of the rocker or valve tappet for extended life and less wear
  • Valve tip lengths - we have taken extra time to adjust tip heights on the applications to require less tipping of the valve, to maintain proper tip height for proper valve train geometry, and to cut down on install times when setting valve lash
  • We have also adjusted the keeper groove to properly balance intake and exhaust spring pressures to reduce the use of valve spring shims and maximize performance from our spring and retainer kits
  • Valves will work with an OEM keeper/lock or, when available, our upgraded keeper/lock. It is not mandatory, but it is suggested, that any valve lock not be reused on performance applications due to material grooving



Vehicle Fitment

  • 2015+ Subaru WRX     FA20DIT

Comes in a full set of 8 valves


warning_symbolWARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.

More Information
SKU GSC2283-8
Manufacturer's Part Number 140102
Brand GSC Performance
Product Type Engine
Engine Cylinder Heads and Valvetrain
