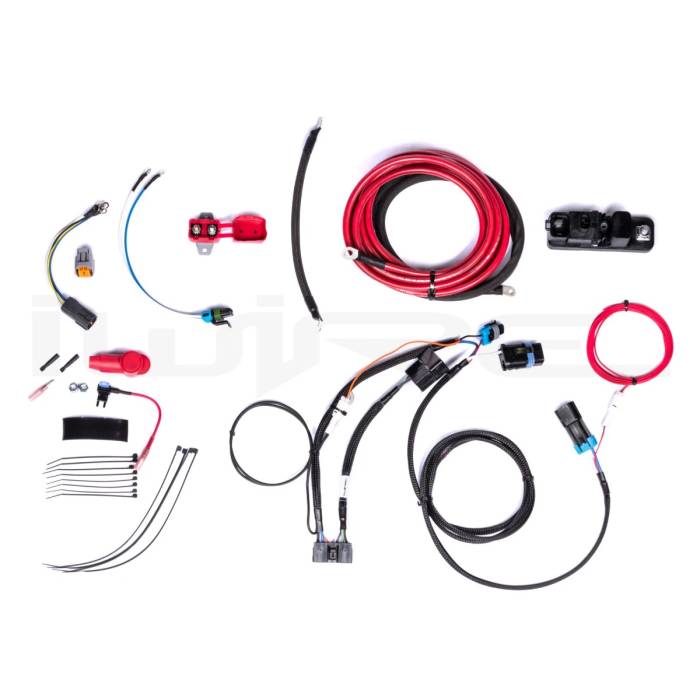

iWire Fuel Pump Controller Hardwire Kit for Radium Hangers - Double Pump

Seamless Integration With Your Radium Hanger

You've just installed your brand new Radium hanger with its two glorious pumps. Now you're ready for "all the fuel in the world," but at that moment, you realize that the connectors don't match up. In fact, this hanger doesn't even have a connector at all. STOP! DON'T CUT ANYTHING! Our iWire Plug and Play Hardwire kit has you covered to adapt the stock connector to the ring terminals found on the Radium hanger for fuel level and temp. In addition, we also have you covered to quickly setup up for the primary and secondary pumps as well!

Two Pumps are Better Than One, But Two Pumps ARE a Lot of Fuel

A staged fuel system (primary and secondary pumps) is a critical component to making power and having a very streetable car. If the two pumps are running at full blast, the fuel system will be over-pressurized, which makes it difficult for tuners to get your car to run smoothly. We create the ideal staged setup by retaining the primary pump functionality from the factory with the all-important low, medium, and high settings. These settings help maintain consistent fuel pressure when idling and cruising. When the boost kicks in, the secondary pump activates with the manifold pressure switch (Pressure Switch Add-On in the drop downs) so that you never run out of fuel.

Not all Hardwire Kits are Created Equal

We have thought of every component needed to make sure your installation is a simple as it can be and handle anything you throw at it. While other kits are cheaper, they are just a fuse and relay. These DIY kits leave you all the pain to figure out how to run the harness, connect the wires, and get the pumps to work right. Even if you managed to figure it all out, you're still left with the nagging concern of a weak connection causing the pump to cut out at the very worst possible moment.

Fitment Notes:

We generally do not recommend a 500+ LPH pump, but if you are we recommend adding on our upgraded Fuel Pump Controller that can handle the extra power.

Standard kit does not work with 2015+ WRX and 2014+ Forester due to Fuel Pump Controller Design.

PRODUCT WARNING:

Installation or use of any iWire product by a user is at the user’s own risk. iWire accepts no liability for any damage to the car or individual. Modifying the fuel tank can be dangerous. iWire recommends that all products, especially those regarding the fuel system, be installed by a licensed professional. By purchasing this product, you accept these terms of sale.



[ These are built to order. Please allow for build time. ]

As low as $374.99
Only %1 left
SKU
iWire FPC HW Kit for Radium Hangers - Double Pump



iWire Subaru Wiring Services began in 2008 with just one man and an idea. Brian thought to himself, "How can I take my knowledge of car wiring, make it easier for other Subaru swappers, and also provide a friendly and transparent service which the automotive industry generally lacks." Since our humble beginnings we have grown in staff and size but our mission has remained the same; to provide a high quality product, great customer service, and reasonable turn-around times all with a straightforward and honest approach. With these core values in mind, we continue to develop relationships with each and every customer in order to provide insight and service that suits their needs. When we say to our customers "if there is anything you need, please ask," we mean it.




WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.



More Information
SKU iWire FPC HW Kit for Radium Hangers - Double Pump
Brand I-Wire
