Baja Designs S8 20 Inch Grille Light Kit (18-21 WRX/STI)

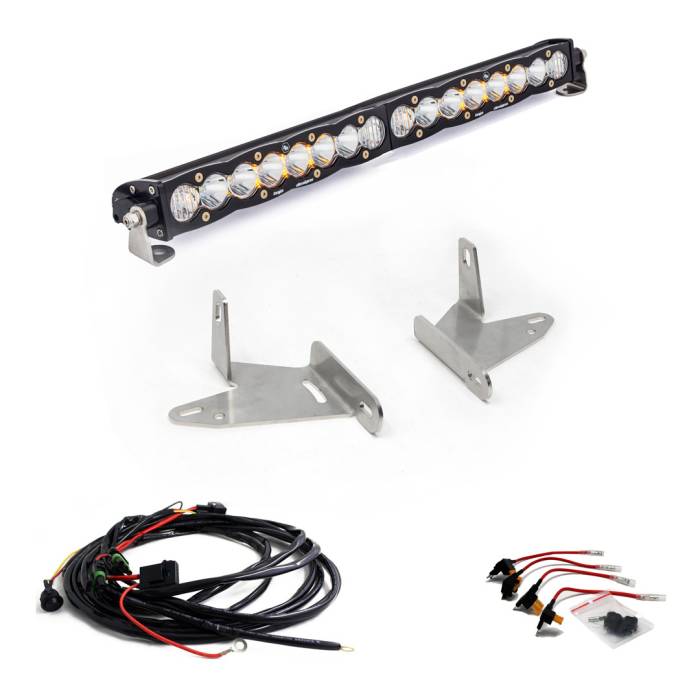

This kit is specifically designed for the Subaru Impreza WRX (18-On). With this mount you will achieve a stylish and clean mounting solution to fill the gap of the stock grille. This kit includes the whole package to get an S8 20 inch on your WRX all while utilizing the vehicle's factory hardware. Some of the differentiating features in our S8 kit is our signature amber back-lighting, and stylish scalloped housing. This kit will give you the light you need when blasting down backroads in the late hours of the night and create an overall better driving experience.
Features:
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
Depth (in.) | 3 |
Height (in.) | 1.6 |
Length (in.) | 20 |
Weight (lbs.) | 4.5 |
Specifications
Amperage Rating (A) | 8.0 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 12,700 |
Description | Driving/Combo; Amber |
Housing Color | Black |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Amber |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam/Amber Backlit Feature |
Lighting Quantity | 16 |
Lighting Technology | Cree LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Mounting Brackets |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S8 20 Inch LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 120 |
Wiring Harness Included | No |
Standards & Compliance
Patent No. | D780,964 |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
The Scientists of Lighting In 1992, Baja Designs was founded in San Diego, California with a passion and thirst for off-road. Performance-driven and race-proven – Baja Designs engineers and manufacturers using only the best components available on the market today. Since the beginning, we have engineered revolutionary ways to stay at the forefront of motorcycle and automotive lighting.
The first product developed was a Dual Sport kit that made pure off-road motorcycles minimally street-legal. Our intimate knowledge of motorcycle electrical capabilities eventually led us to engineer the first HID motorcycle race light. Founder Alan Roach, an avid Baja 1000 motorcycle racer, was able to fine-tune a motorcycle’s limited light optics to maximize rider comfort, speed, and safety. As a result, BD Lights has won every professional and amateur motorcycle and ATV Baja 1000 class for over 15 years.
As our engineers and racers advanced to truck and buggy racing, the next evolution began. The engineers quickly adapted their race-winning HID motorcycle lights to their new race vehicles. With amazing speed, BD HID lights were adopted by the vehicle race community and could be found on the majority of Baja 1000 winning vehicles. In the process, BD engineers became well known as “The Scientists of Lighting” and were sought out by professional race teams to develop and aim their vehicle lighting.
LED lights were the next natural evolution of lighting and BD was the first company to develop a forward-projecting LED light bar which was introduced and raced in the 2005 Baja 1000. That original LED light bar has evolved into a line of the highest-performing and race-winning LED auxiliary lights on the market.
Revolutionizing industry-leading lights is not just a job at BD, but a lifelong passion for both the owners and employees. The BD product line is dedicated to being BRIGHTER, BOLDER, and BETTER, which is why we truly are “The Scientists of Lighting”.
Year Fitments | Subaru WRX | Subaru STI |
---|---|---|
2015 | ||
2016 | ||
2017 | ||
2018 | ✓ | ✓ |
2019 | ✓ | ✓ |
2020 | ✓ | ✓ |
2021 | ✓ | ✓ |
