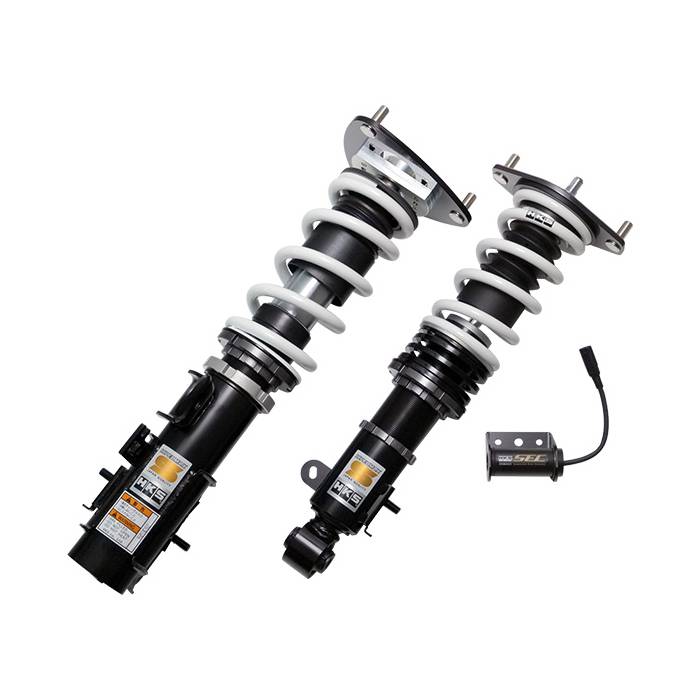

HKS Hipermax S Coilovers - Full Canceller - F Pillowball (2022+ WRX)
$2,990.00
SKU
hks80300-AF010CP
[ Excluded from Shipping Specials ]
The popular WRX S4 HIPERMAX S now features pillow upper mounts on the front, allowing for camber angle adjustment.
With the stock electronically controlled suspension, the ride feels fluffy and unstable in comfort mode, while in sport mode, small bumps in the road are very noticeable. Our high-performance shock absorbers with large diameter single-cylinder pistons provide a high-quality ride even with the car lowered.
The suspension has been set to move smoothly, absorbing small bumps in the road while generating a firm damping force for wavy roads and cornering turns, improving road compliance.
By installing the error canceller included in the set, you can avoid the error that appears when you remove the stock electronically controlled suspension.
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 69 ( 7.0 ) | 59 ( 6.0 ) |
| Free height (mm) | 200 | 170 |
| Spring type | Straight Barrel type | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | - | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 333 / 382 | 294 / 412 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 44 / 55 | 57 / 49 |
* The value of the damping force is at piston speed of 0.1m/sec.
| Year Fitments | Subaru WRX | ||
|---|---|---|---|
| 2022 | ✓ | ||
| 2023 | ✓ | ||
| 2024 | ✓ |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | hks80300-AF010CP |
|---|---|
| Manufacturer's Part Number | 80300-AF010CP |
| Brand | HKS |
