GSC Billet S3 Camshafts - Single AVCS (04-07 STI, 06-14 WRX)
$999.29
SKU
GSC7025S3

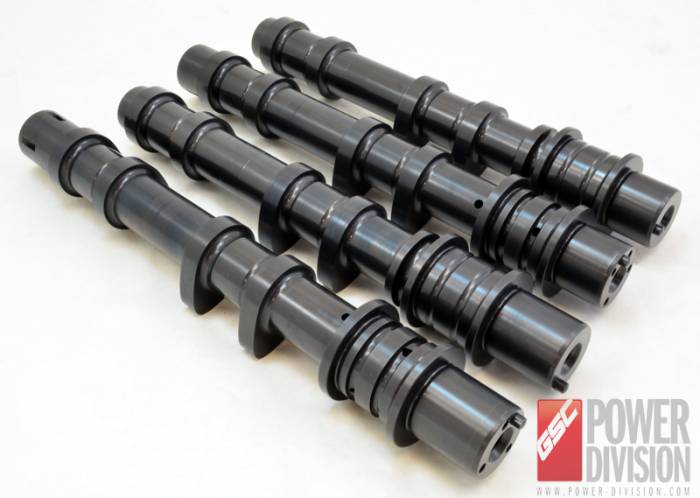

GSC 7000 Series Full Billet Camshafts are 100% in-house cut and ground on the newest, most precise CNC machines available. The 7000 Series camshafts take the import valve train market to another level, being the only readily available and affordable billet camshafts for sport compact/import performance cars.
GSC Power-Division Billet S3 camshafts for the USDM STi and WRX with Intake only AVCS. These cams are built to suite the high horsepower drag Subys. With a power range of 750-1000WHP and a rev range of 4500-9500RPMs, you need some certain mods to utilize the true potential of the S3s. Built motor, with a built/ported head (clearanced for lift), and a standalone engine management system. Upgraded valve springs are required; Beehive valve springs are recommended but not required.
FEATURES
- Check Pictures for cam placement. Long nose= Left Side, short nose - Right Side
- Due to the lobe size, head castings will need to be filled down slightly for clearance.
- Proper break in and running high zinc oil is a must on flat tappet engines. Must be installed by an experienced technician
- Requires upgraded valve springs
| ADV Duration | Duration @ 0.040" | Peak Lift | Center Line | |
|---|---|---|---|---|
| Intake | 280 | 240 | 11.55mm | 130 |
| Exhaust | 280 | 241 | 11.60mm | 115 |
| Year Fitments | Subaru STI | Subaru WRX |
|---|---|---|
| 2004 | ✓ | |
| 2005 | ✓ | |
| 2006 | ✓ | ✓ |
| 2007 | ✓ | ✓ |
| 2008 | ✓ | |
| 2009 | ✓ | |
| 2010 | ✓ | |
| 2011 | ✓ | |
| 2012 | ✓ | |
| 2013 | ✓ | |
| 2014 | ✓ |
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to P65Warnings
| SKU | GSC7025S3 |
|---|---|
| Manufacturer's Part Number | 7025S3 |
| Brand | GSC Performance |
| Product Type | Engine |
| Engine | Cylinder Heads and Valvetrain |
