AEM X-Series OBDII Wideband UEGO AFR Controller
AEM's X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334) provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune. The 30-0334 X-Series OBDII Wideband Gauge is validated to work with EFILive, HPTuners and DashDaq software.

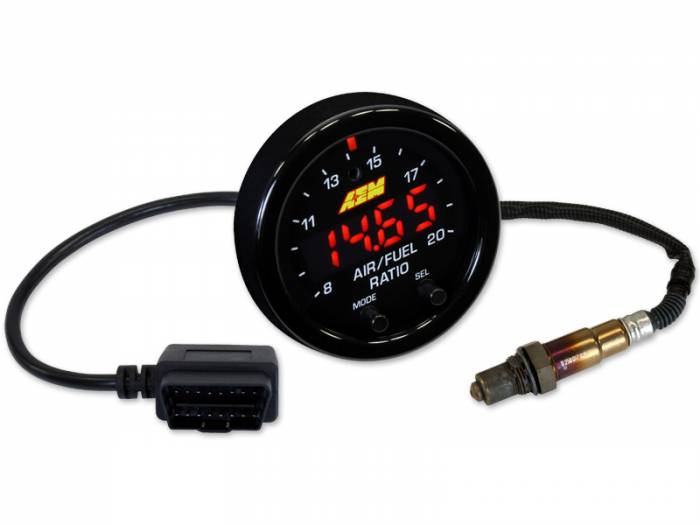

The X-Series Wideband AFR OBDII Gauge includes an OBDII pass-through connector and Bosch 4.9LSU sensor that can be free-air calibrated or used with the factory resistor calibration. Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.
OBDII CAN-bus OUTPUT
The OBDII output simulates an auxiliary ECU signal when plugged into a vehicle’s OBD port, which requires a unique address from the other ECUs already on a vehicle’s network. AEM’s default OBDII CAN address will work with most popular vehicles and adjustments should not be necessary. However, AEM has provided OBDII address programmability through the buttons on the gauge face if a different address other than the default address is required, allowing users to program ECU #, Parameter Identification (PID), Message Identifier, and Bit Rate.
PATENTED X-DIGITAL TECHNOLOGY – It’s The Fastest
X-Series Widebands are the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers.* The controller’s high speed, patented, X-Digital technology (Patent 9,575,030) ensures no loss of signal fidelity and full transient response, making it able to identify the slightest fluctuations in AFR and output them in full value.
FEATURES
- Patented X-Digital Technology makes it the Fastest Responding Wideband AFR Controller (Patent # 9,575,030)
- OBDII pass-through provides AFR readings through the factory ECU CAN-bus – Ideal for users with piggyback programmers or open source tuning software
- Includes Bosch 4.9LSU wideband UEGO sensor and OBDII pass-through connector
- Use the factory 02 calibration or free-air calibrate using buttons on faceplate
- Compatible with vehicle/system voltages up to 16V
- Optional outputs for 0-5V & RS232 for data logging and feedback control (requires wiring)
- Can display AFR values in hundredths of %
- 52mm gauge diameter and slim 0.825” gauge depth
- Gauge cup depth only .200” deep!
- Auto dimming feature
- User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, 3- or 4-digit display and OBDII output settings (if necessary)
- Black bezel and black dual faced faceplate included (silver bezel/white gauge option sold separately, PN 30-0300-ACC)
- Locking connectors
$256.95
SKU
AEM30-0334
We create innovative new products that set the standard in the performance aftermarket, delivering the highest level of product integrity and making advanced technologies accessible to the racing masses.
We believe that a positive customer experience is the key to our success. We achieve this success by delivering products that produce an exceedingly high level of gratification.
We have a deep appreciation for every racer, enthusiast and distribution partner who chooses to trust our products and will always strive to provide an unparalleled customer service experience. We will evolve to meet the support needs of our customers and we will put our customers first. We will continue to set the standard for service and support in our industry.
WARNING: Operating, servicing and maintaining a passenger vehicle or off-road vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to https://www.P65Warnings.ca.gov/passenger-vehicle.
| SKU | AEM30-0334 |
|---|---|
| Manufacturer's Part Number | 30-0334 |
| Brand | AEM |
| Product Type | Engine, Interior and Safety |
| Engine | Electronics and Sensors |
| Interior and Safety | Gauges |
