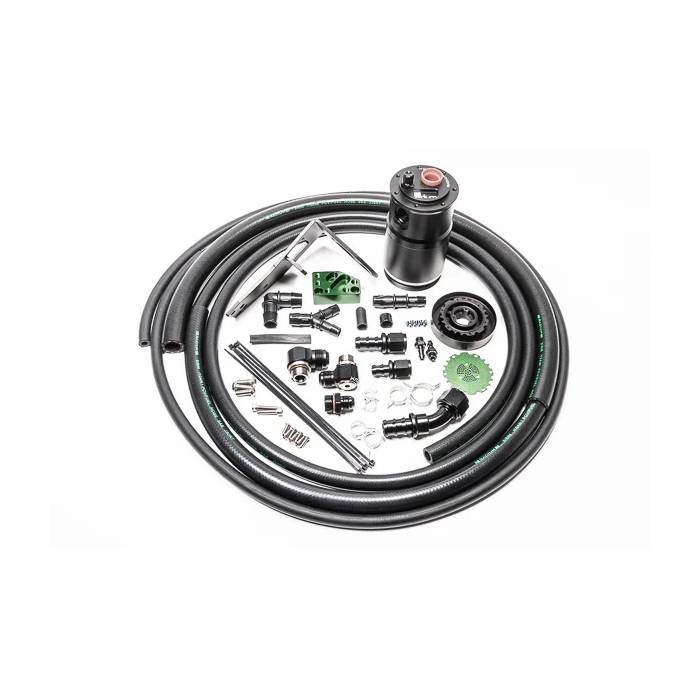

Radium Air Oil Separator (AOS-R) Kit (Subaru 02-14 WRX, 04-21 STI, 04-13 FXT)

High-powered modified Subaru engines tend to generate excessive blow-by oil and gasses. In these cases, an ordinary small catch can may quickly fill with oil and not be adequate. Like the Radium Engineering , the AOS (Air Oil Separator) kit is responsible for keeping blow-by oil and other pollutants out of the intake pipe, manifold, turbocharger, and intercooler during all engine loads. The main difference is that an AOS-R system returns what is collected back into the oil pan so there is no servicing required.

The built-in heater keeps water from condensing in the AOS. And because water is more dense than oil, there is an integrated water trap found around the bottom perimeter of the can.

BENEFITS

• Effectively raises the octane and increases engine performance with cleaner inlet air
• Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
• Lowers hydrocarbon emissions

SPECS & FEATURES

• AOS Height: 6.3" (without fittings)
• AOS Diameter: 3.45" Round
• AOS Capacity: 20.3oz (600mL)

PORTS

• Inlet: 7/8"-14 threaded for 10AN ORB fittings
• Outlet: 7/8"-14 threaded for 10AN ORB fittings
• Return: 7/8"-14 threaded for 10AN ORB fittings
• Coolant: 7/16"-20 threaded for 4AN ORB fittings (x2)
