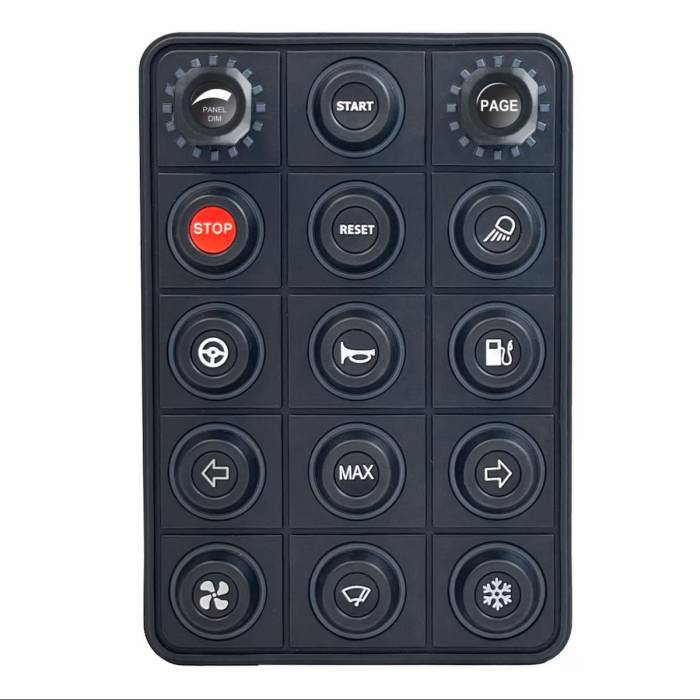

Link CAN Keypad 15 Button & 2 Rotary Encoders

Rugged 15 button CAN Keypad with interchangeable 15mm inserts (sold separately). Two rotary encoders with 16 Blue indicator LEDs each. Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad. The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality.

FEATURES

• 15 Buttons and 2 Rotary Encoders (push enabled, buttons can function independent to rotary encoder)
• 4 Analog Inputs for additional Sensors or Switches
• CAN Configurable with G4X/G5 PC Link – Change button LED backlight colour, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latchedand toggle.
• CAN Bus Communication back to Engine Management System/PDM
• 16 Blue LED Lights on Rotary Encoders while all 13 Pushbuttons Buttons have customisable RGB LED Rings
• Compatible with all Link G4X and G5 ECUs
• Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical
• DTM4 Connector for CAN and Power, Molex Connector for Analogue Inputs

SPECIFICATIONS

• Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
• Switch Life - 3 million operations
• Default Baud Rate - 1000kbit/s
• Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
• UV Protection - UVB 400 hours
• Salt Spray Per - ASTMB117
• Weight - 360grams
• Dimensions - 105 x 152.5 x 16.3mm (excl mounting studs)

Box Contents:

• 1 x 15 Button CAN Keypad
• 1 x DTM4 Mating Connector Kit
• 1 x Molex Mating Connector Kit
• 1 x Link Sticker
• 1 x Keypad Button Insert – Link Logo

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.
