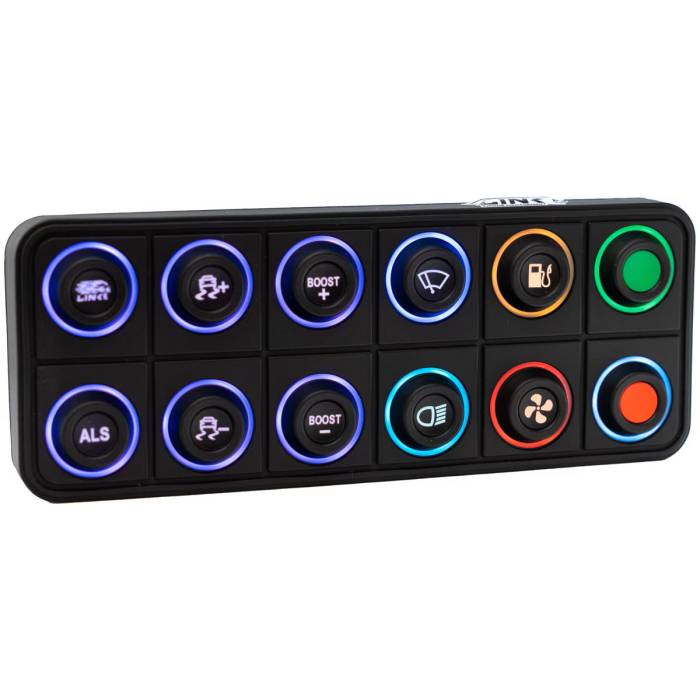

Link CAN Keypad 12 Button

Rugged 12 key CAN Keypad with interchangeable 15mm inserts (sold separately).

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.
The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.

Can be installed both inside and outside, perfect for street, track and off-road use.

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Features:

• CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
• Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical.
• IP67/IP69K Waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high
  pressure water at high temperature spray downs.
• Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards

Specifications:

• Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)
• Switch Life - 3 million operations
• CANopen Node ID – 0x15 (21)
• Default Baud Rate - 1000kbit/s
• Ingress protection Rating – IP67/IP69K
• Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
• UV Protection - UVB 400 hours
• Salt Spray Per - ASTMB117
• Dimensions – 181.5mm (W) x 70mm (H)

Mounting Specs:

• Mounting Stud Gap (Centre to Centre) 136.14mm
• Nuts thread: #10-32
• Maximum torque: 0.8Nm

Box Contents:

• 1 x 12 Button CAN Keypad
• 1 x DTM4 Mating Connector Kit
• 1 x Link Sticker
• 1 x Keypad Button Insert – Link Logo
